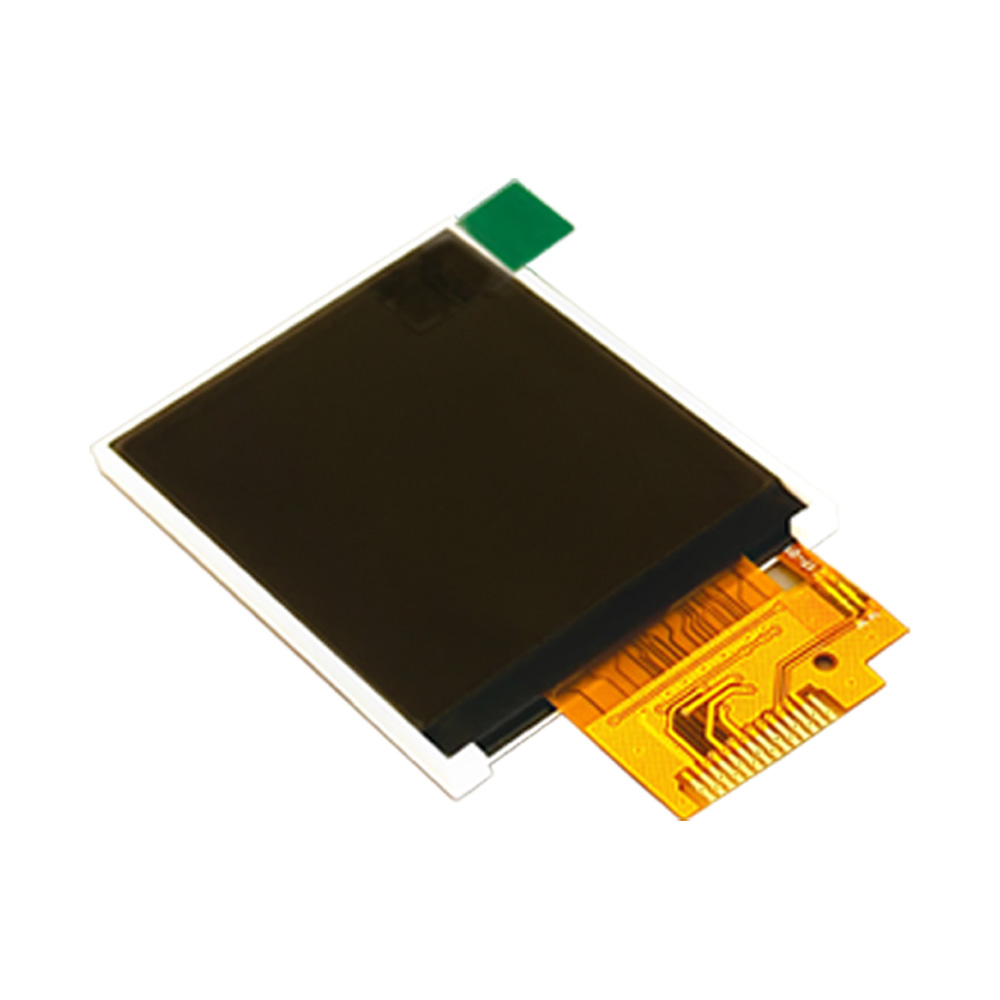

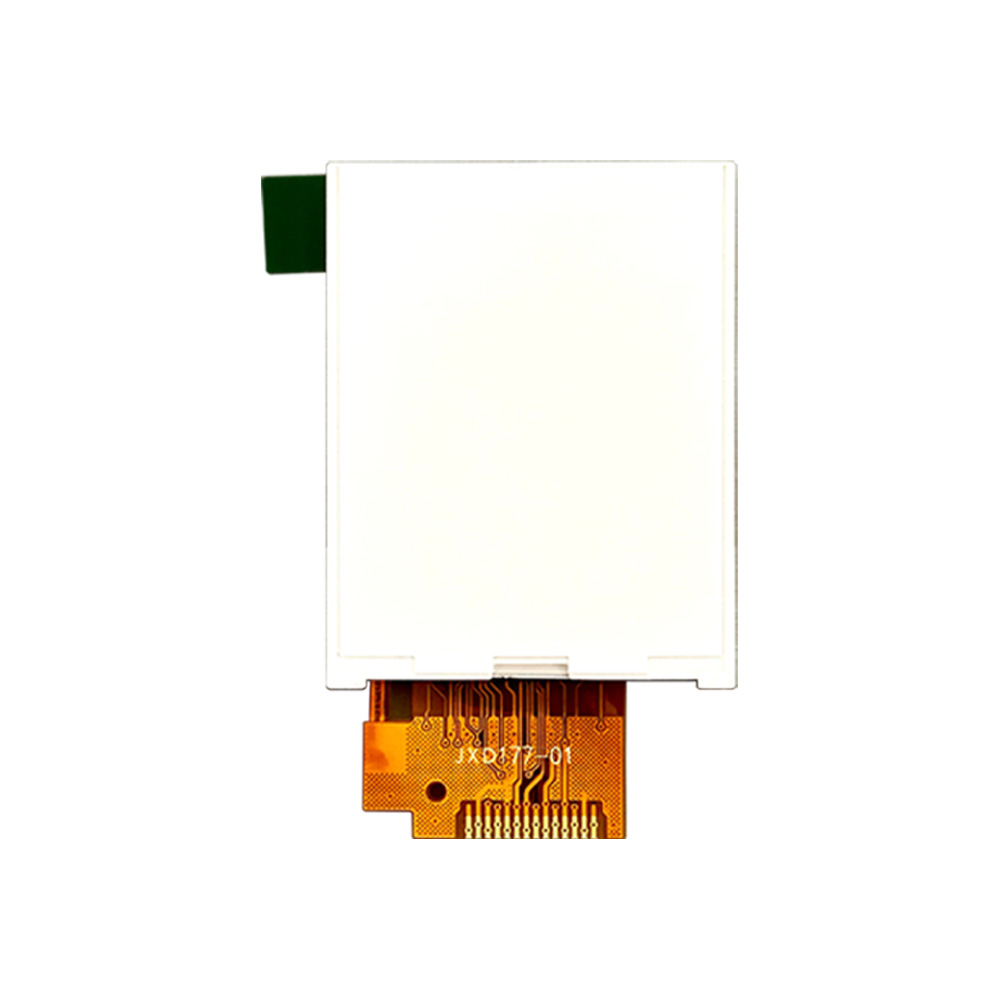

1.8 TFT Color LCD Display-SJXD-T18DE

SJXD-T18DE

In stock, shipped directly

Quick Info:

  • Resolution:128BGR*160
  • Model Size: 34×43.7×2.5mm
  • VA Size:28.74×36.04mm
  • Pixel Arrangement :RGB
  • Viewing Direction:6 o’clock
  • Drive Voltage:2.8V
  • Interface: 4-SPI
  • Drive IC: : ST7735S
  • LED Backlight: 2 CHIP-WHITE LED If=40mA Vf=3.0士0.20V
  • Luminance:320-370 cd/m2(TYP)

Basic Information
Feature
Product Size
FAQ

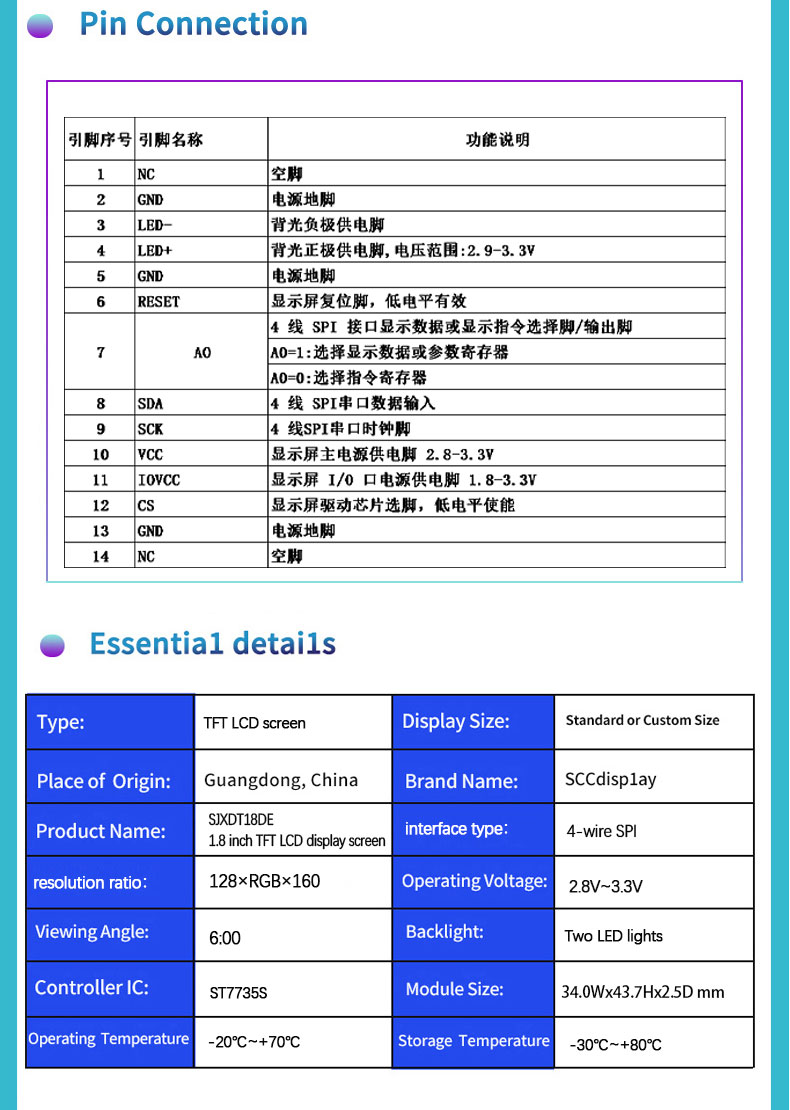

Basic Information

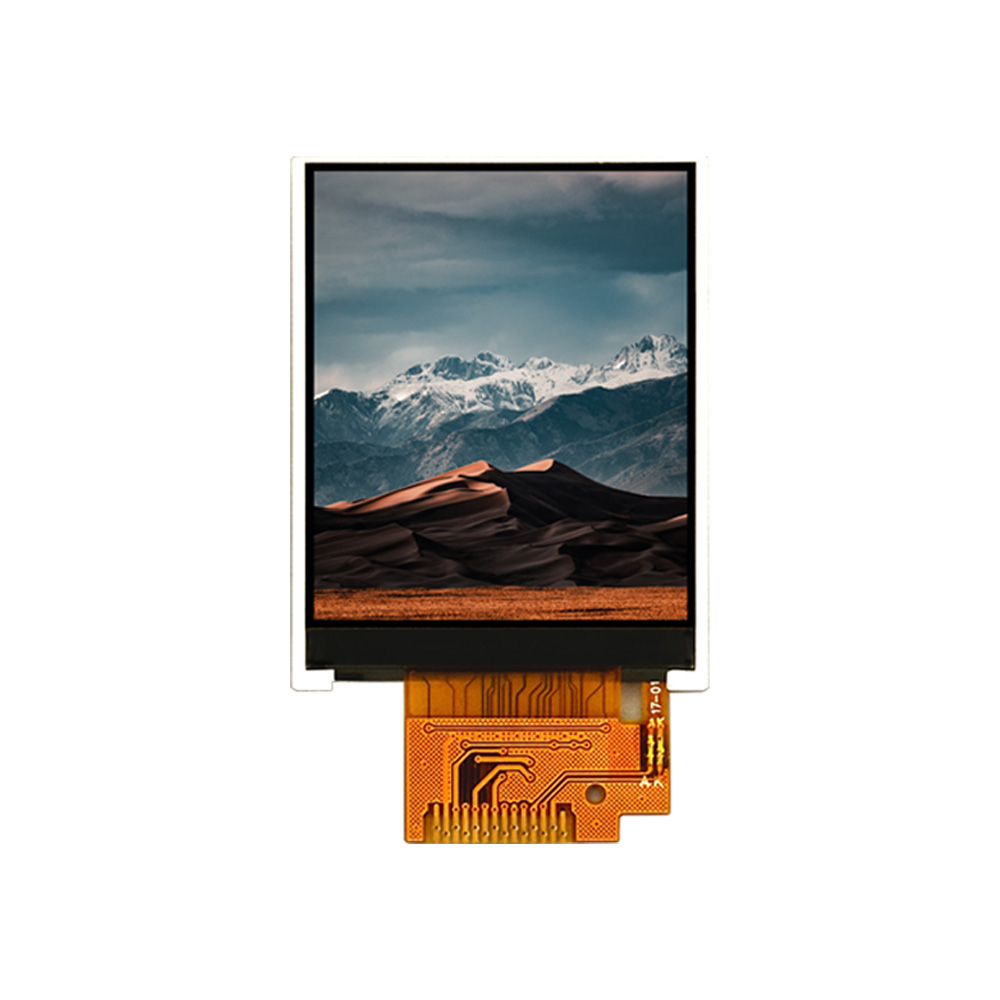

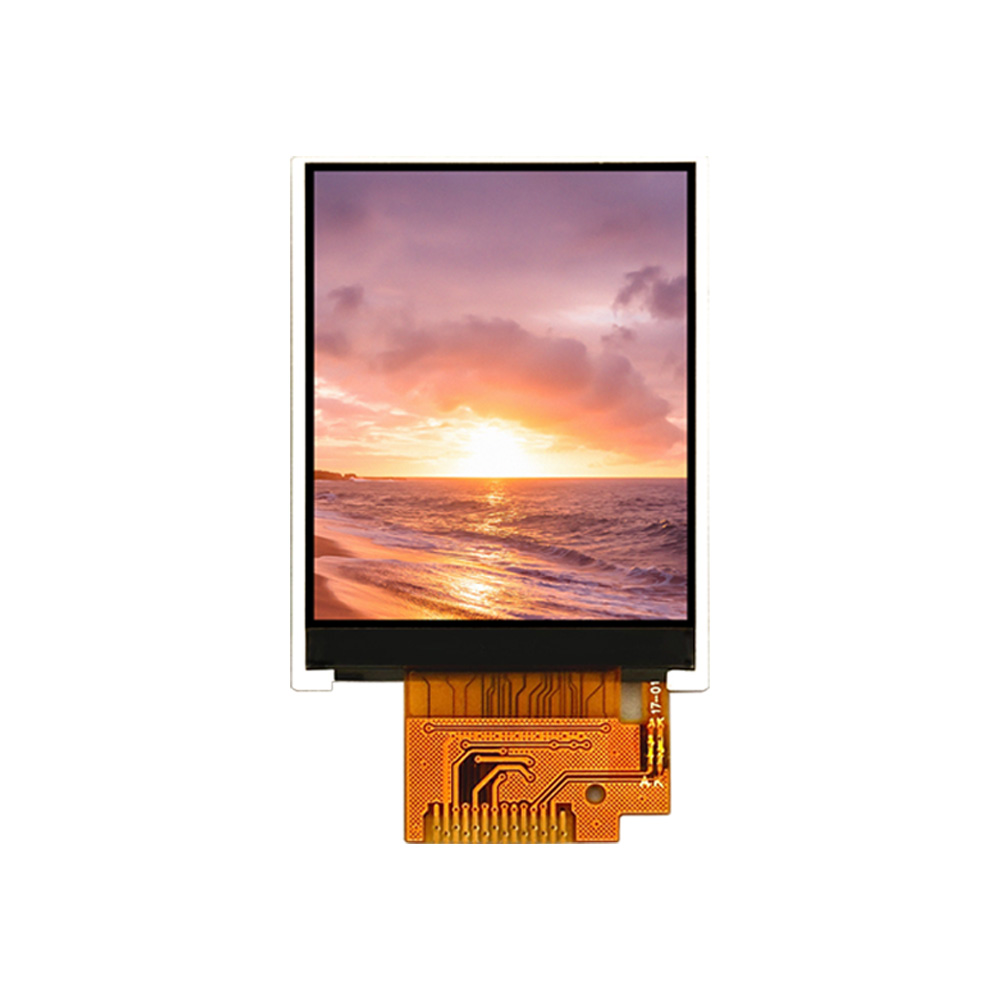

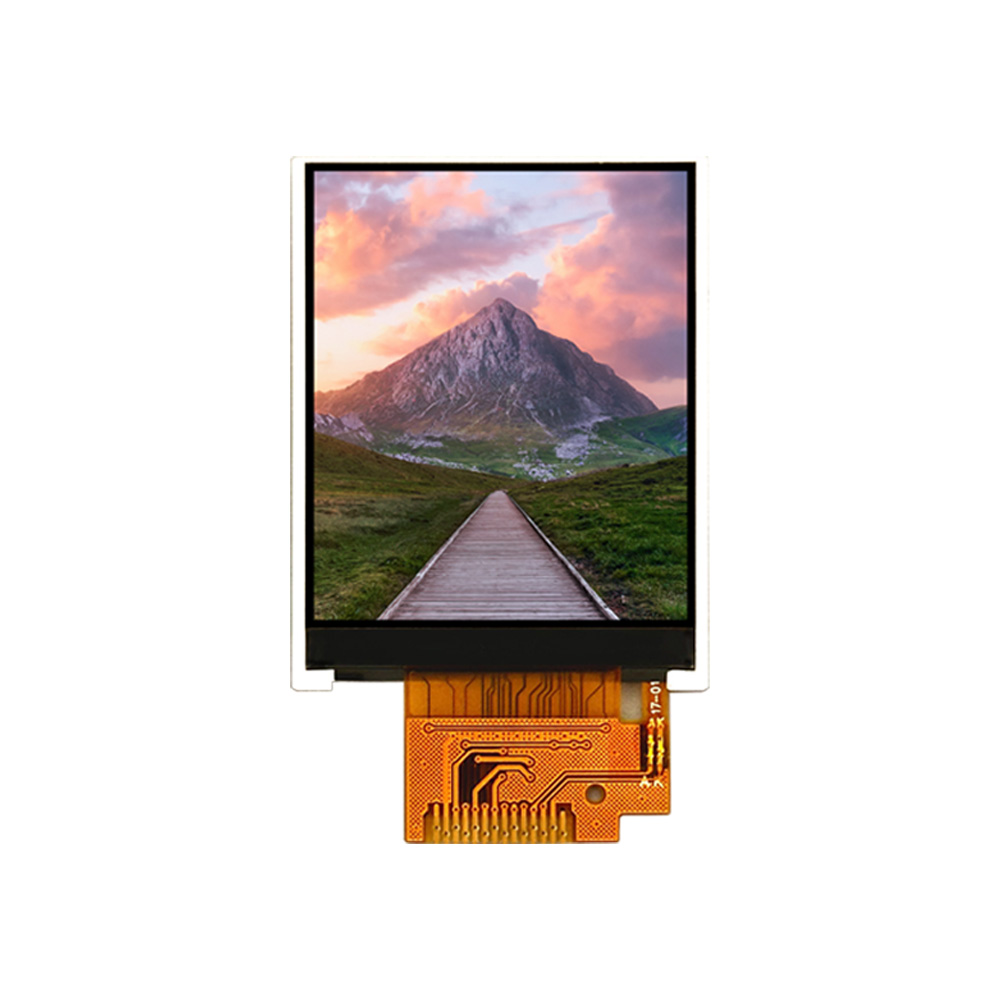

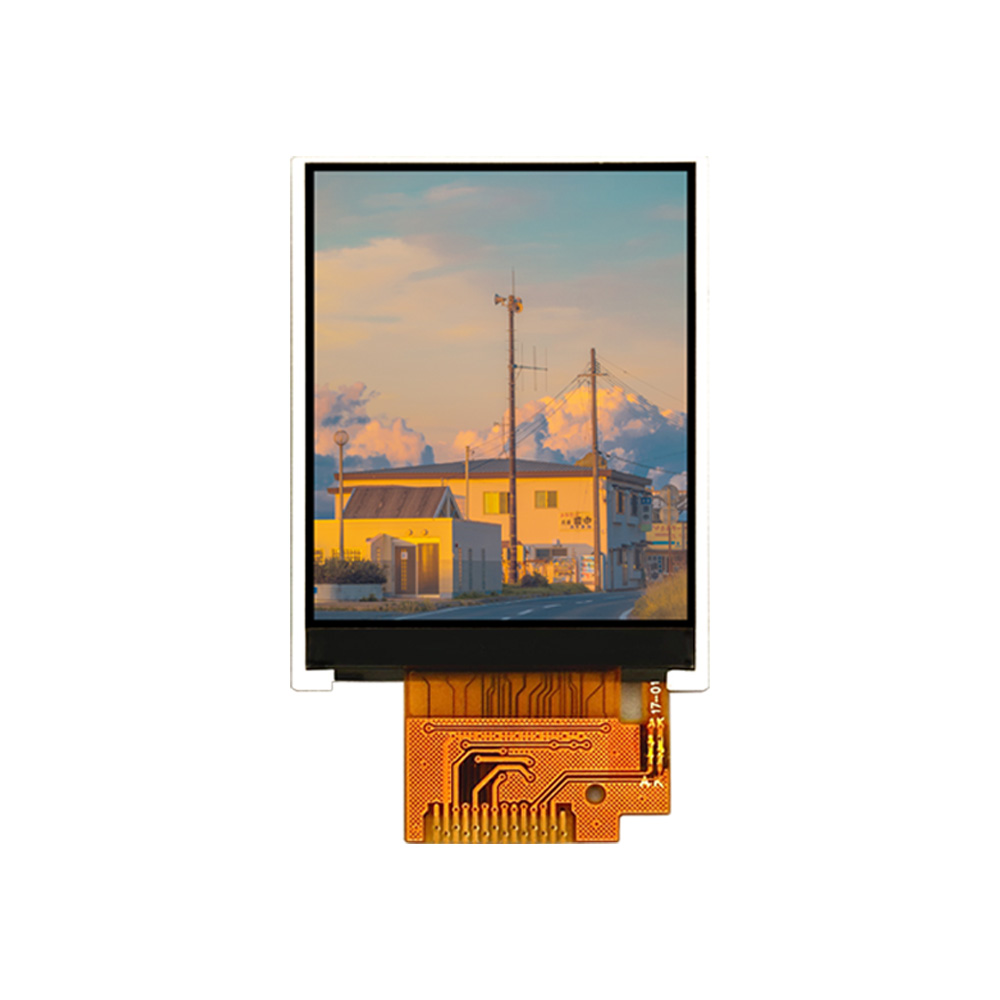

1.8-inch TFT color LCD display is a small, vibrant screen used in various electronic projects and devices. These displays typically feature a resolution of 128×160 pixels.Can display multiple pattern images with vibrant colors.

Type 1.8 Inch TFT LCD
Model SJXD-T18DE
Model Size 34×43.7×2.5mm
VA Size 28.74×36.04mm
Drive IC ST7735S
Drive Voltage 2.8V
Interface 4-SPI
LED Backlight  2 CHIP-WHITE LED If=40mA Vf=3.0士0.20V
Working Temperature
-20°C – +70°C
Storage Temperature
-30°C – +80°C
Luminance
320-370 cd/m2 (TYP)

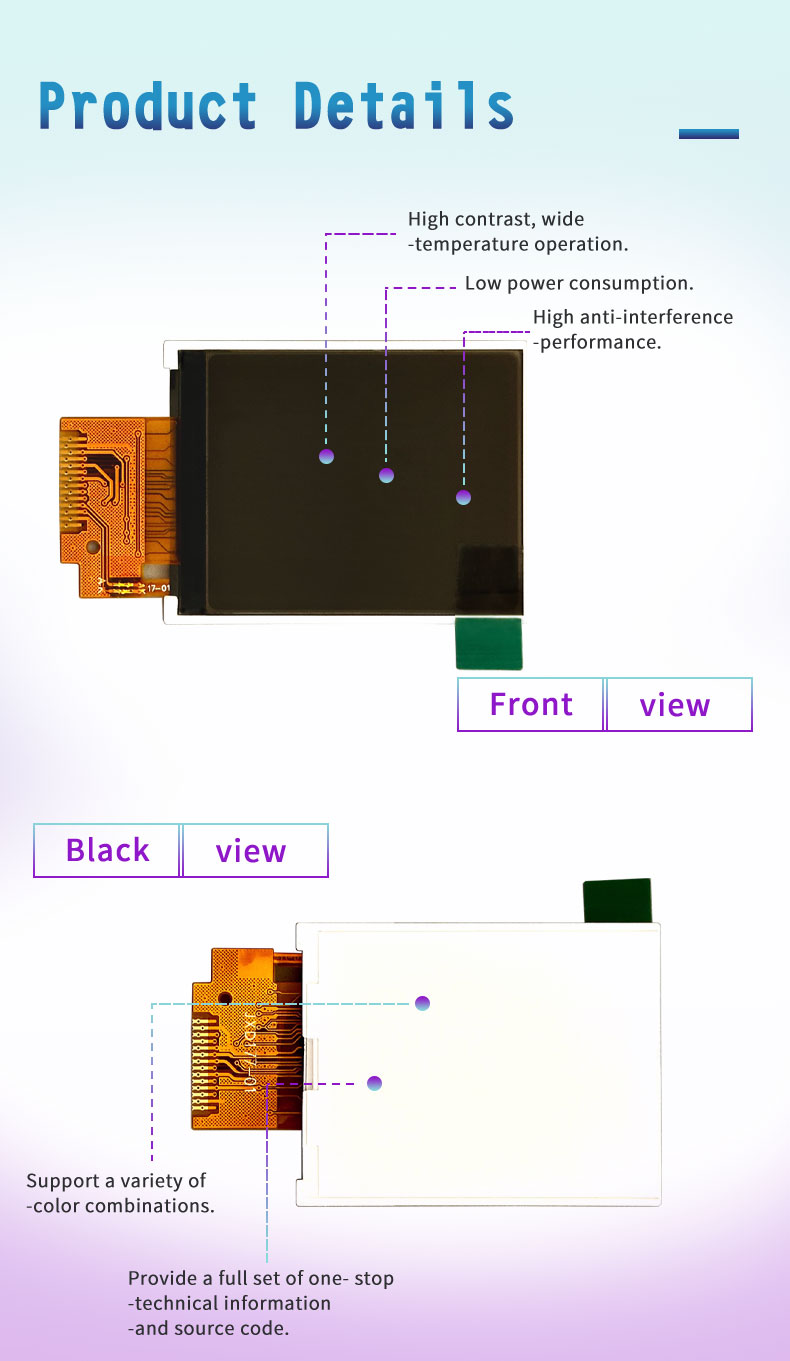

Feature

  • High contrast, wide-temperature operation
  • Low power consumption, high anti-interference performance
  • Support for multiple color combinations
  • Provide a complete set of one-stop technical information and source code
  • Supports customization
  • Supports 1-3 day samples
  • High quality and cost-effective

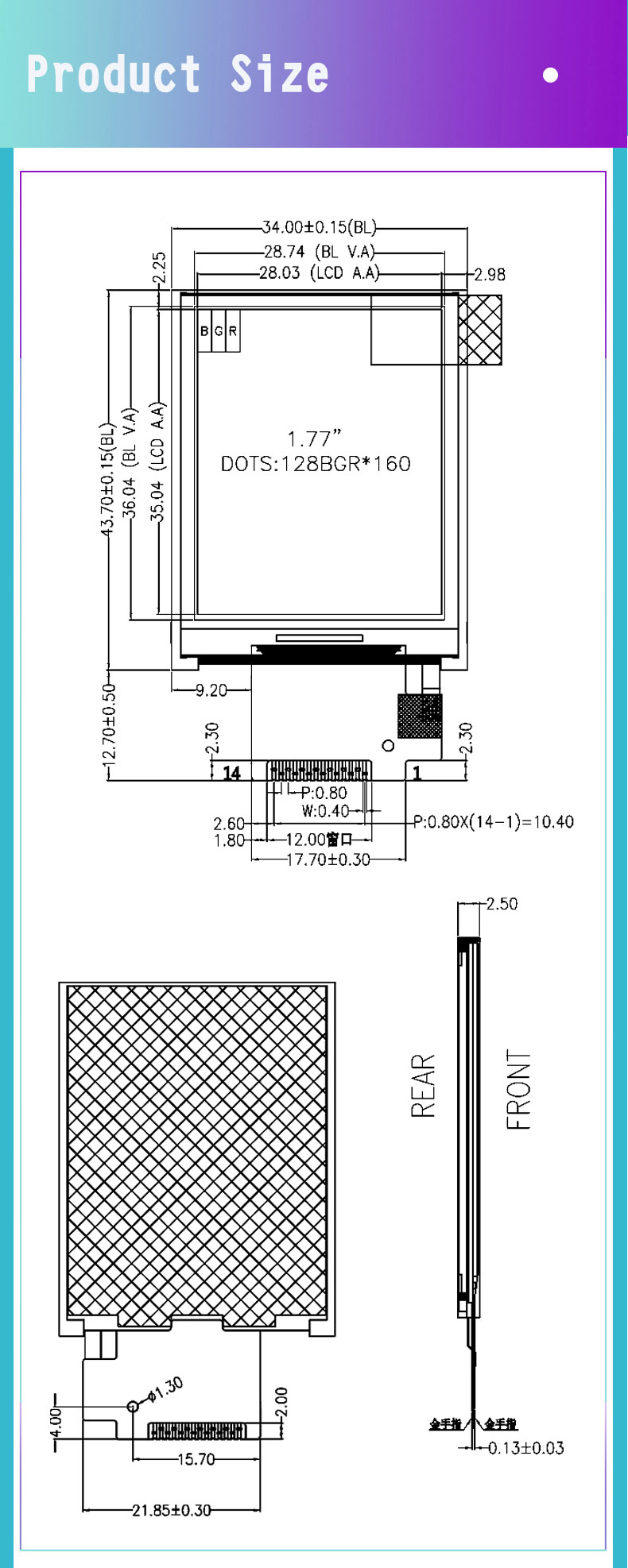

Product Size



FAQ

Q: When to ship?
A: The general delivery time is 1-3 days

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
