Basic Information
Monochrome LCD displays are an economical and efficient choice for many electronic projects，Has the advantages of wide temperature range, low energy consumption, and high cost-effectiveness.

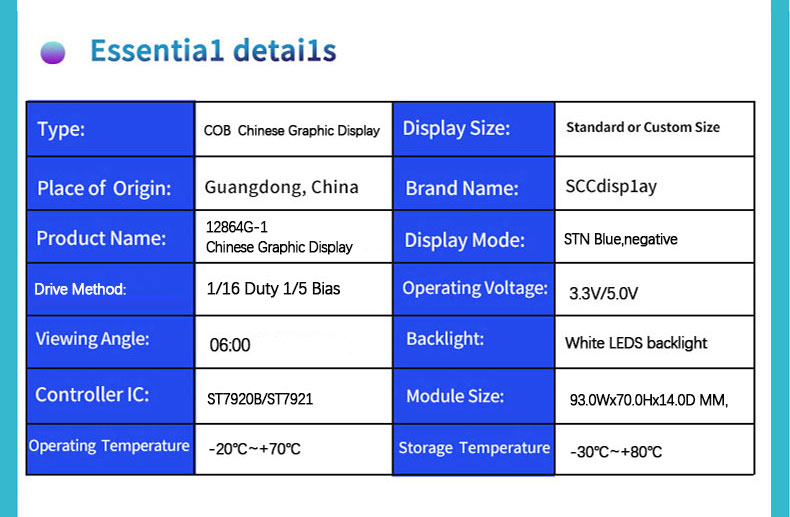

| Model | SJXD12864G-1 |
| Model Size | 93.0×70.0×14.0 mm |
| Field of View Size | 72.0×40.0mm |
| Display Mode | STN Negative |
| Viewing Angle | 06:00/09:00/12:00 |
| Top |
-20℃~+70℃
|
|
Tst
|
-30℃~+80℃ |
|
Backlight
|
White LEDs backight |
|
Drive IC
|
ST7920B/ST7921 |
|
Drive Voltage
|
5.0V or 3.3V |
Feature

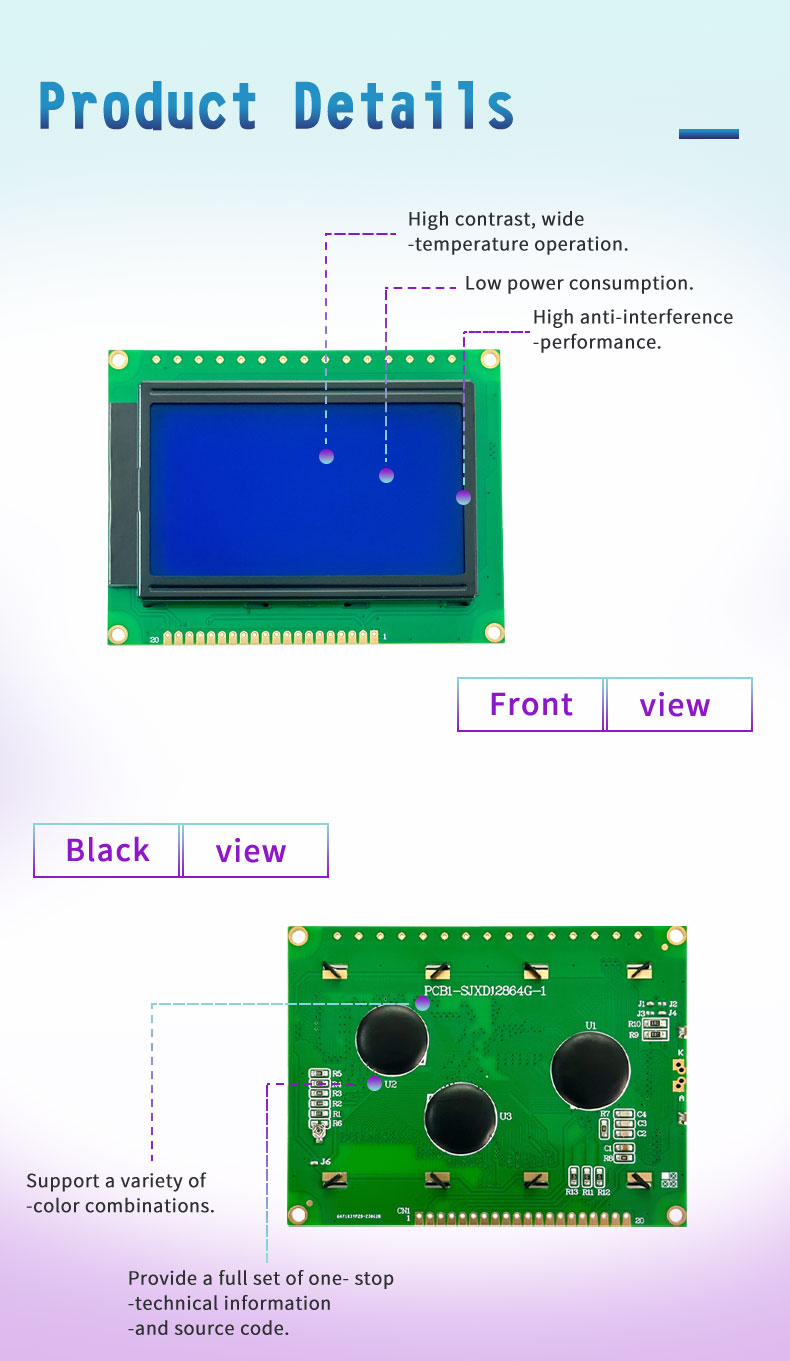

- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective

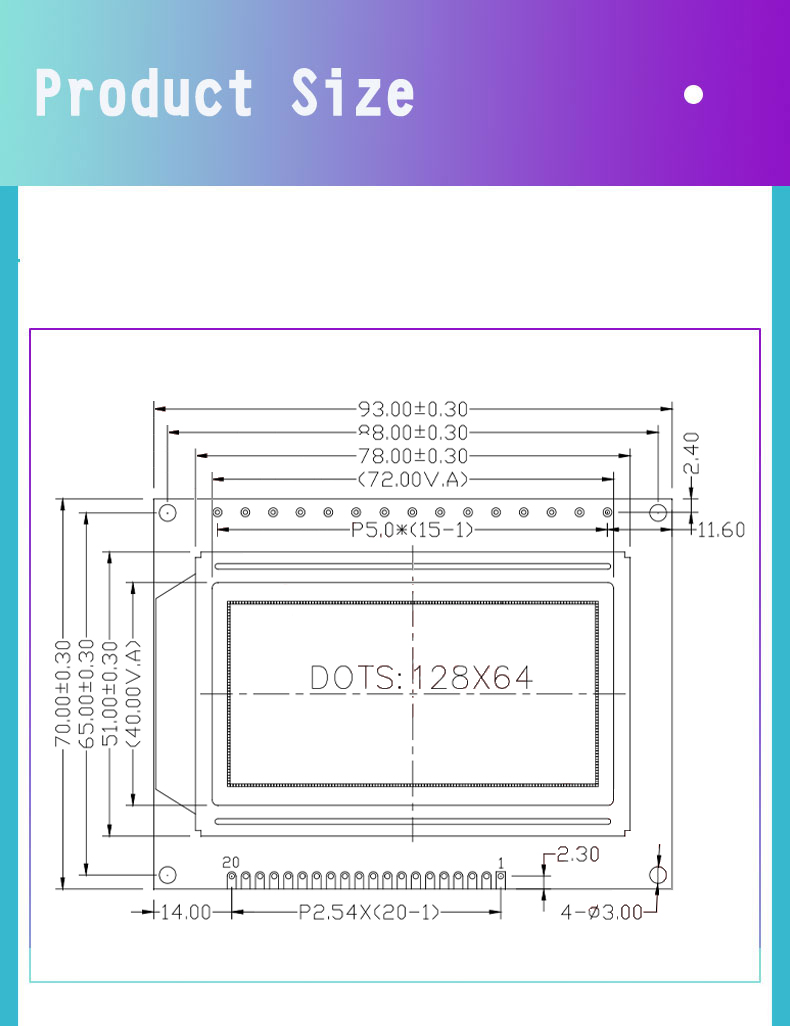

Product Size
FAQ
Q: Do you have stock available?
A: All of them are in stock, you can contact us for purchase if needed.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
