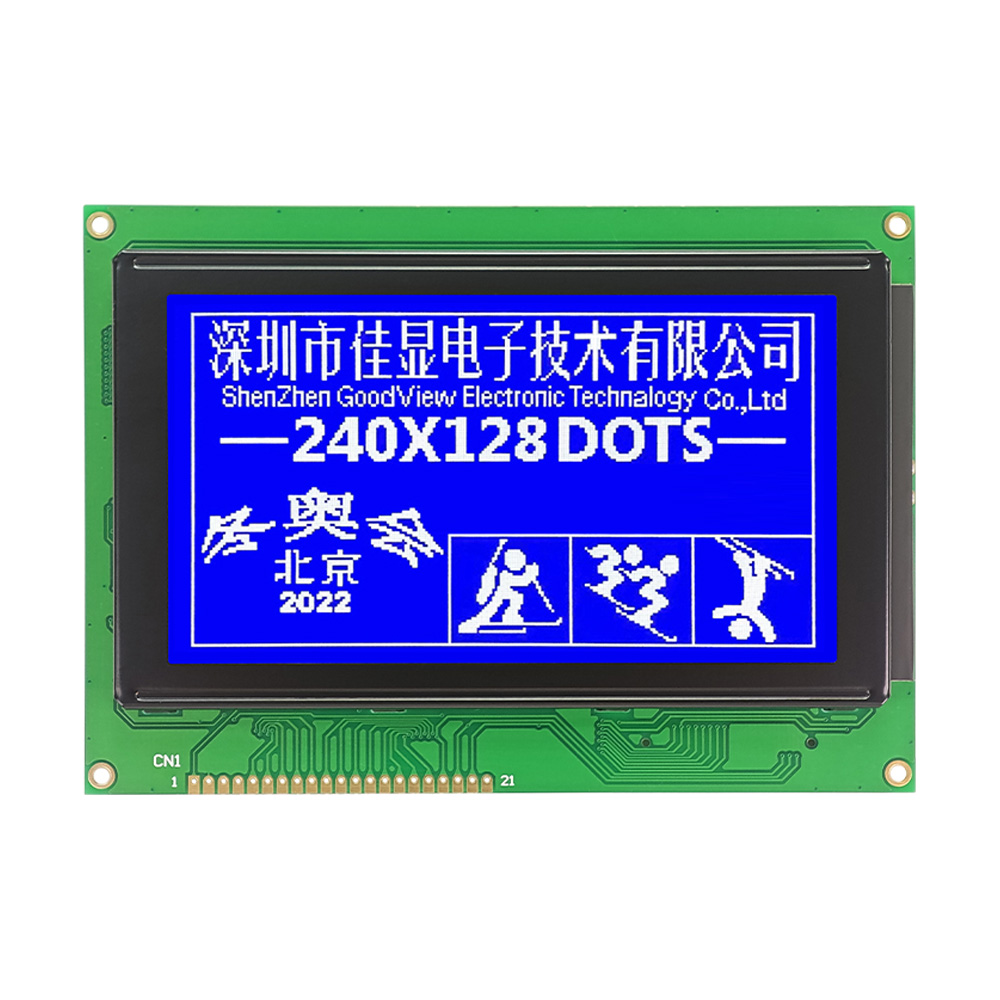

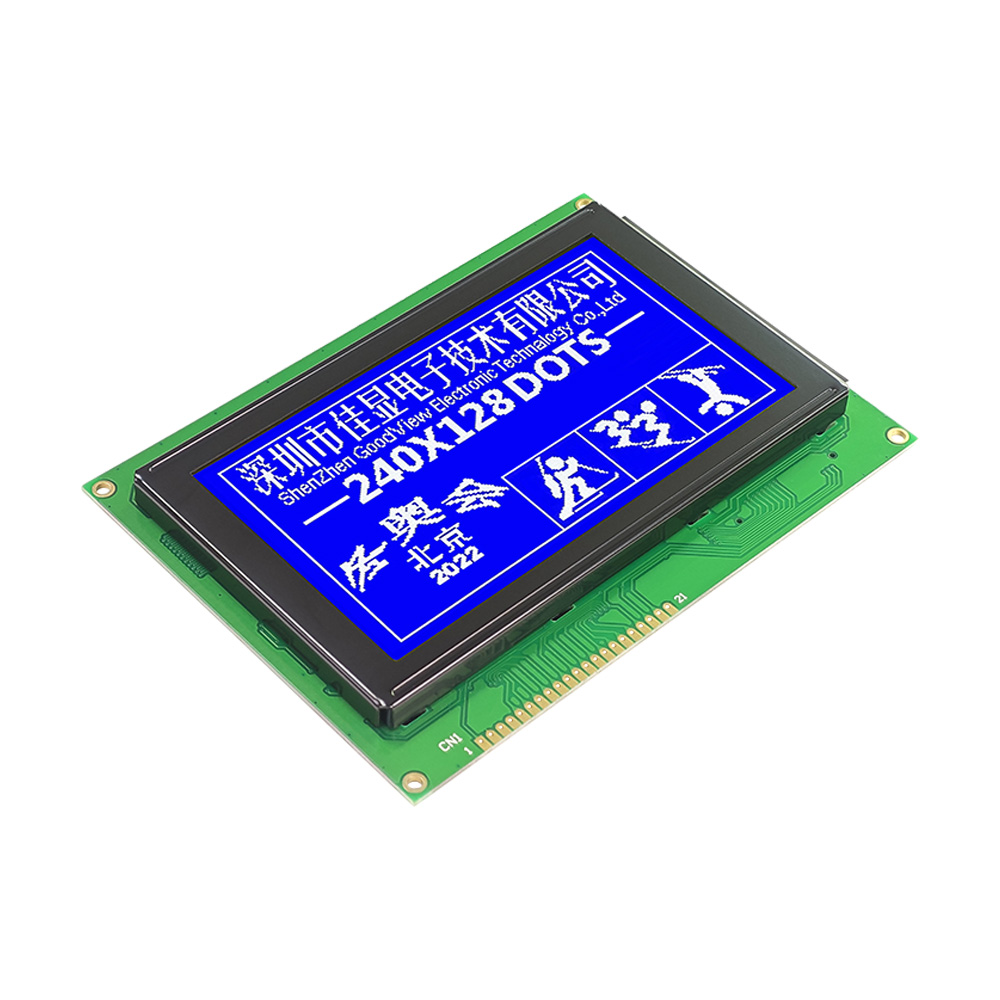

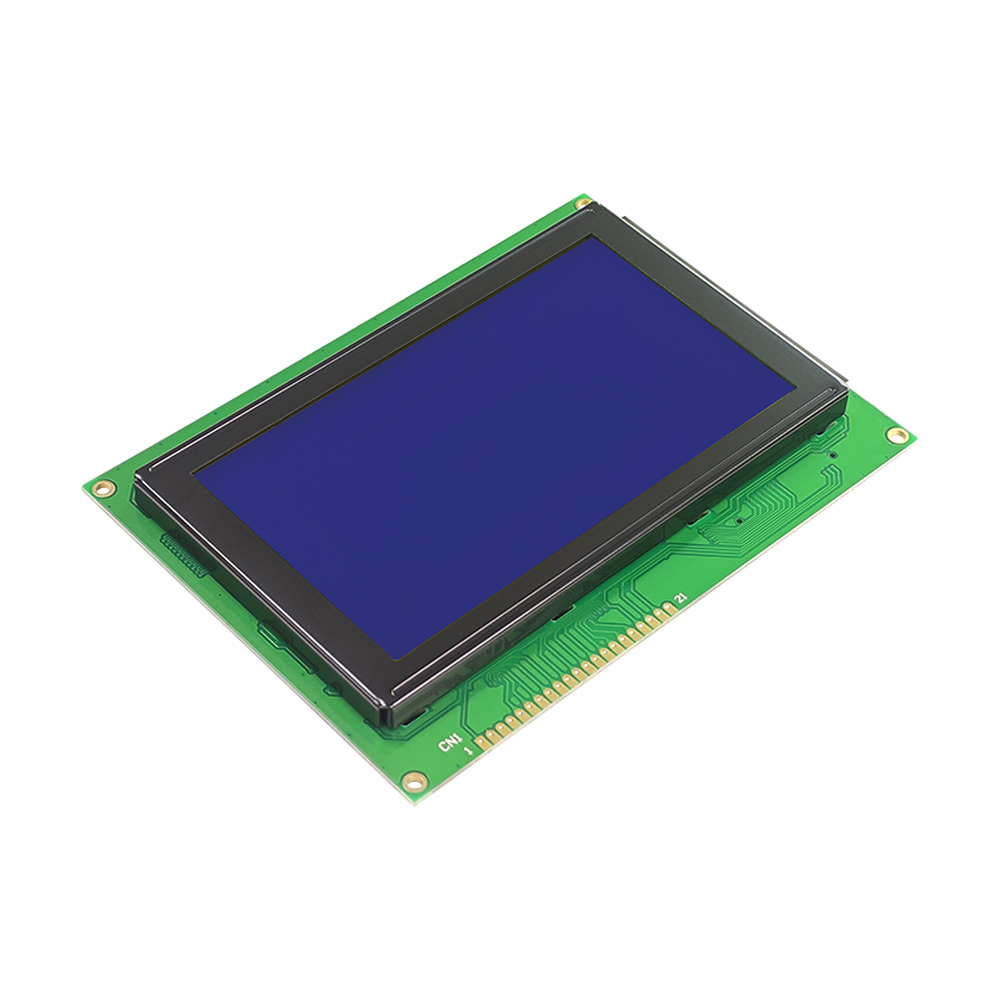

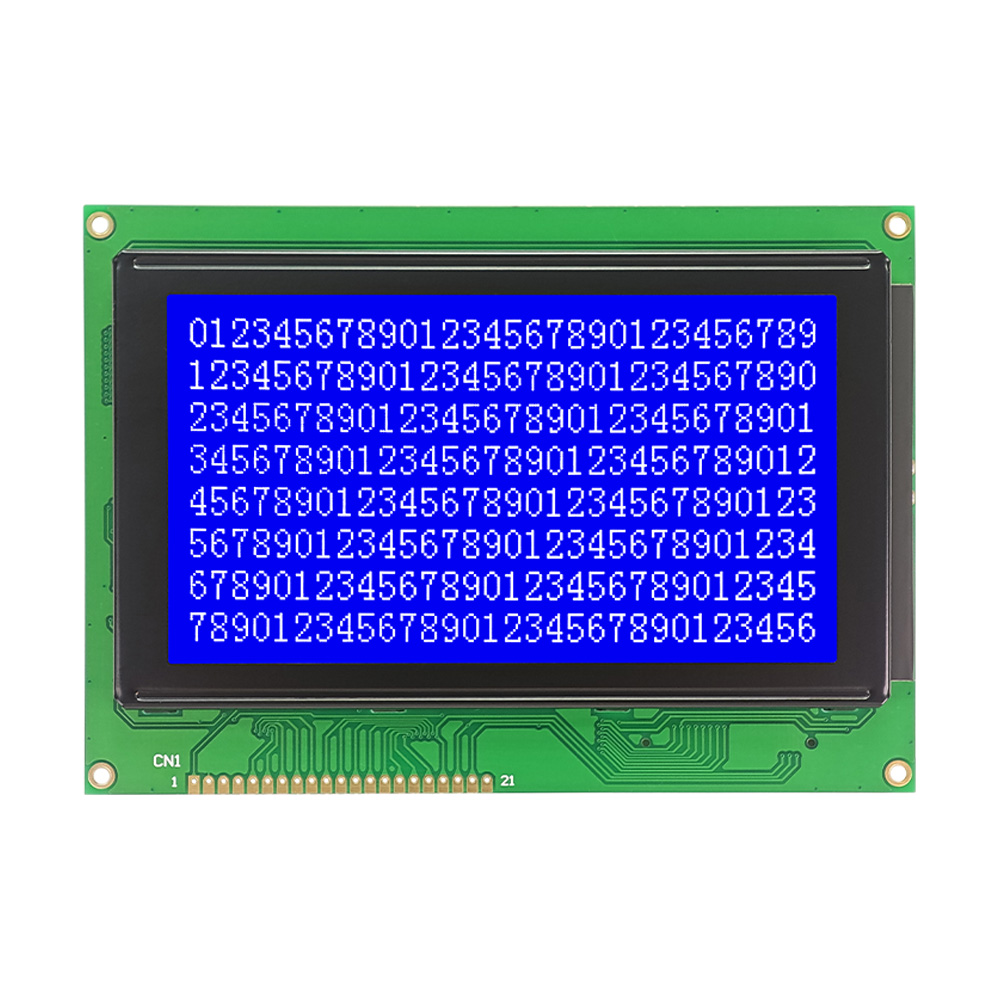

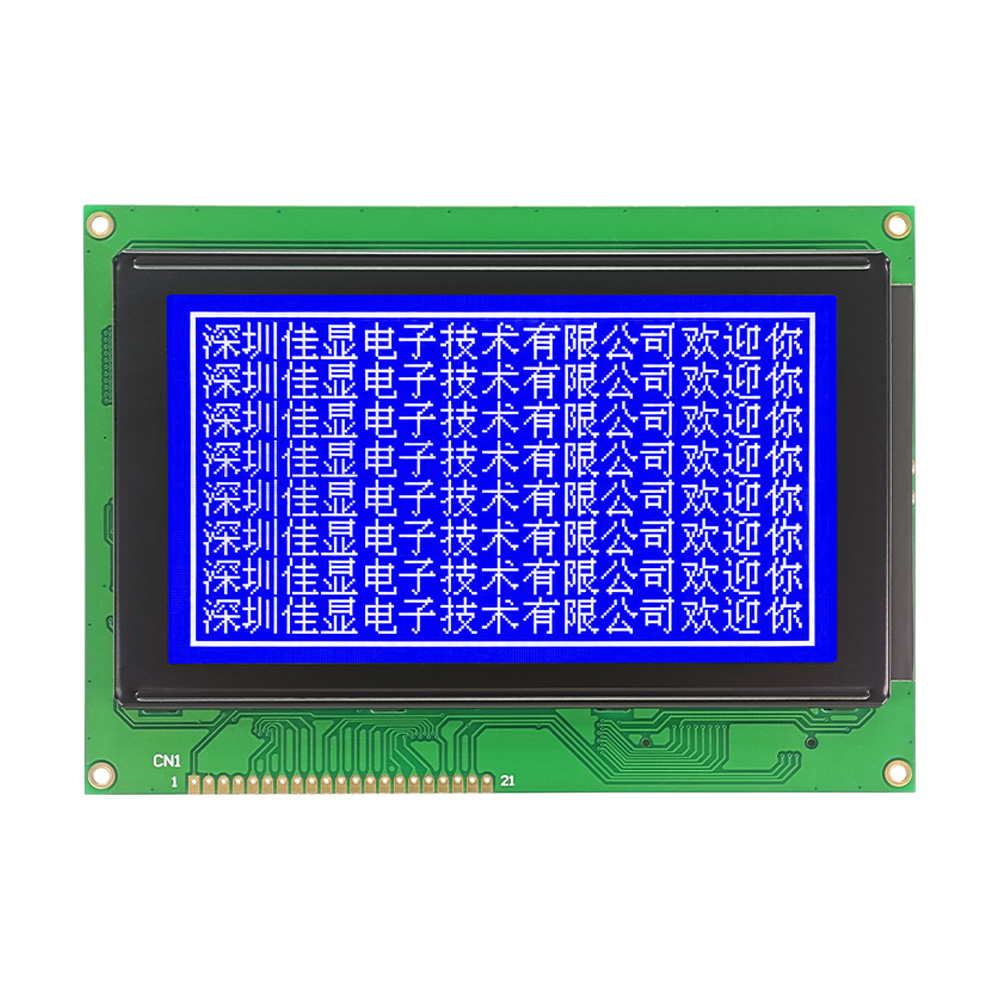

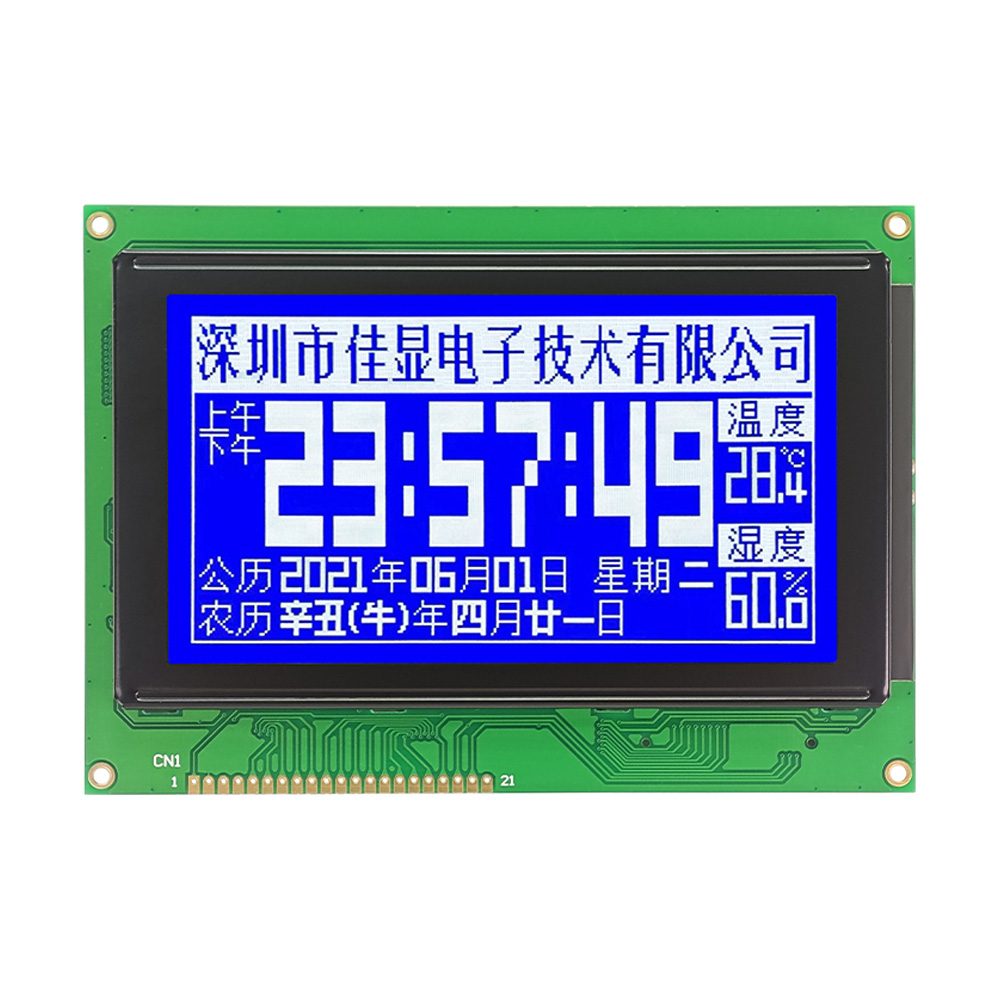

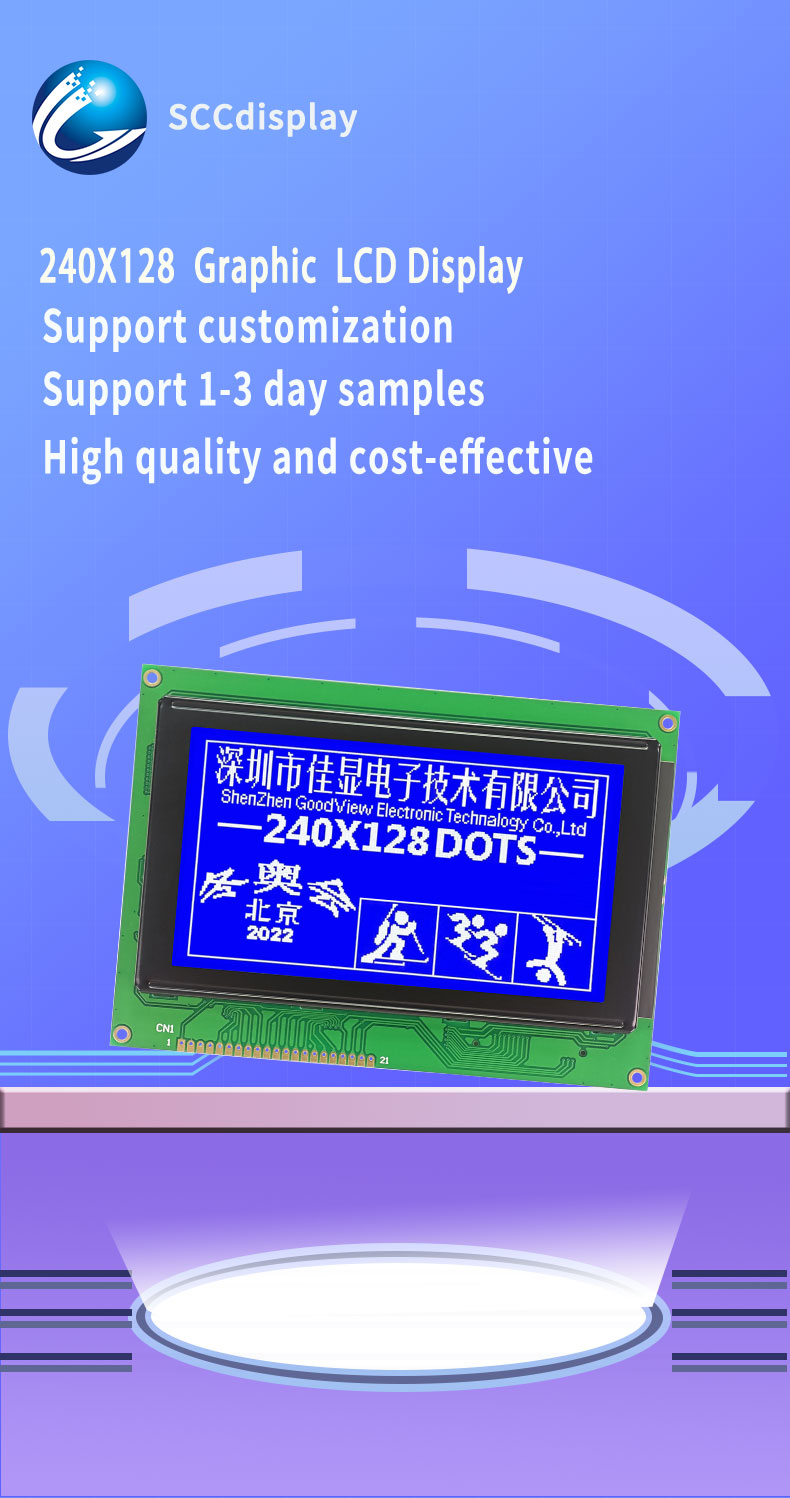

Graphic LCD Display 240×128-JXD240128A(STN Negative)

JXD240128A

In stock, shipped directly

Quick Info:

  • Model Size: 144.0×104.0×14.0 mm
  • Field of View Size: 133.2×64.0mm
  • Display Mode:STN Negative
  • Drive Voltage: 5.0V/3.3V
  • Drive IC: T6963C/UC6963
  • Drive Method: 1/128 duty, 1/9bias
  • Operating Temperature:-20℃~+70°C
  • Storage Temperature:-30℃~+80°C
  • Viewing Angle:6:00/9:00/12:00

Basic Information
Feature
Product Size
FAQ

Basic Information

240×128 graphic LCD display is a type of screen that has a resolution of 240 pixels in width and 128 pixels in height. These displays are used in various applications, including embedded systems, industrial equipment, and consumer electronics, to show detailed graphical information.

Model JXD240128A
Model Size 144.0×104.0×14.0 mm
Field of View Size 133.0×64.0mm
Display Mode STN Negative
Viewing Angle 6:00/9:00/12:00
Drive Method 1/128 duty, 1/9 bias
Top
-20°C~+70°C
Tst
-30℃~+80°C
Drive IC
T6963C/UC6963
Drive Voltage
5.0V/3.3V

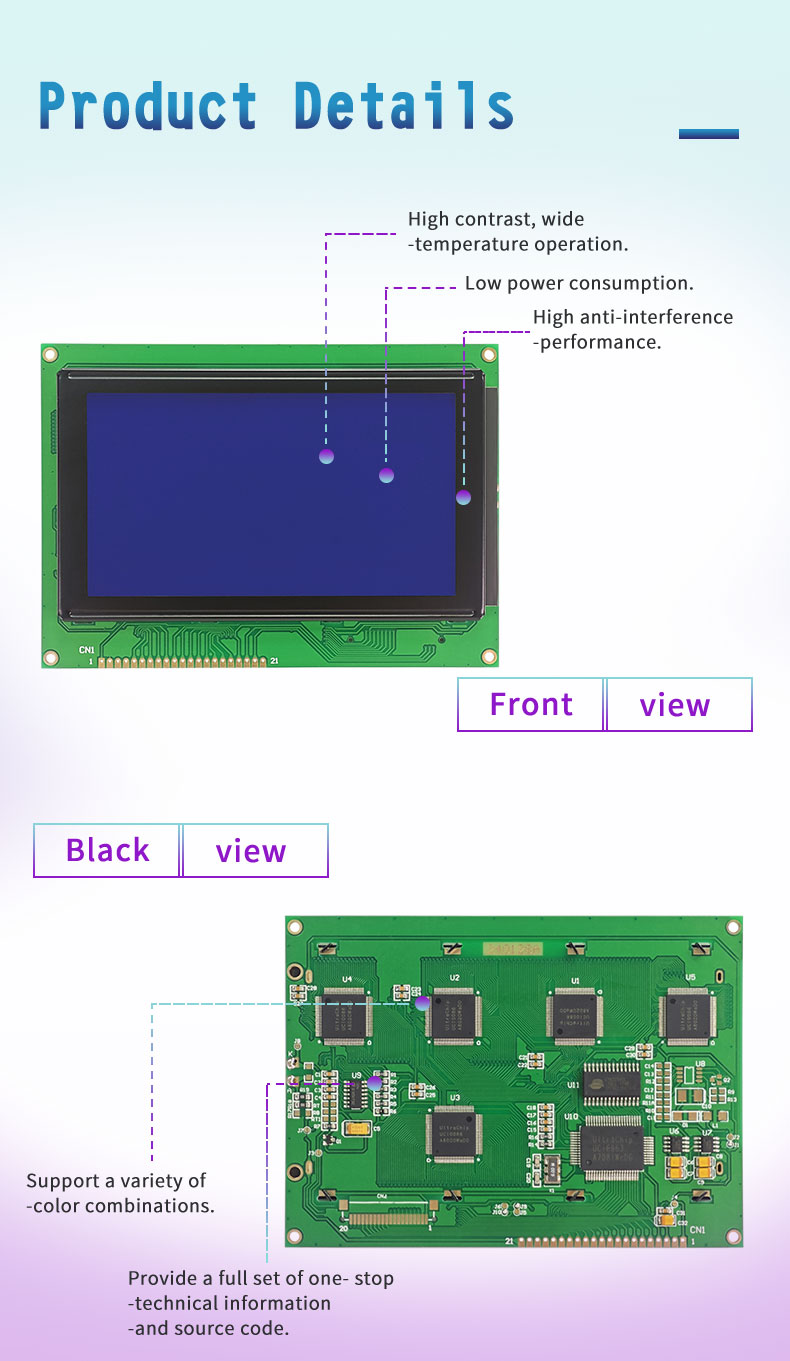

Feature

  • High contrast, wide-temperature operation
  • Low power consumption, high anti-interference performance
  • Support for multiple color combinations
  • Provide a complete set of one-stop technical information and source code
  • Supports customization
  • Supports 1-3 day samples
  • High quality and cost-effective

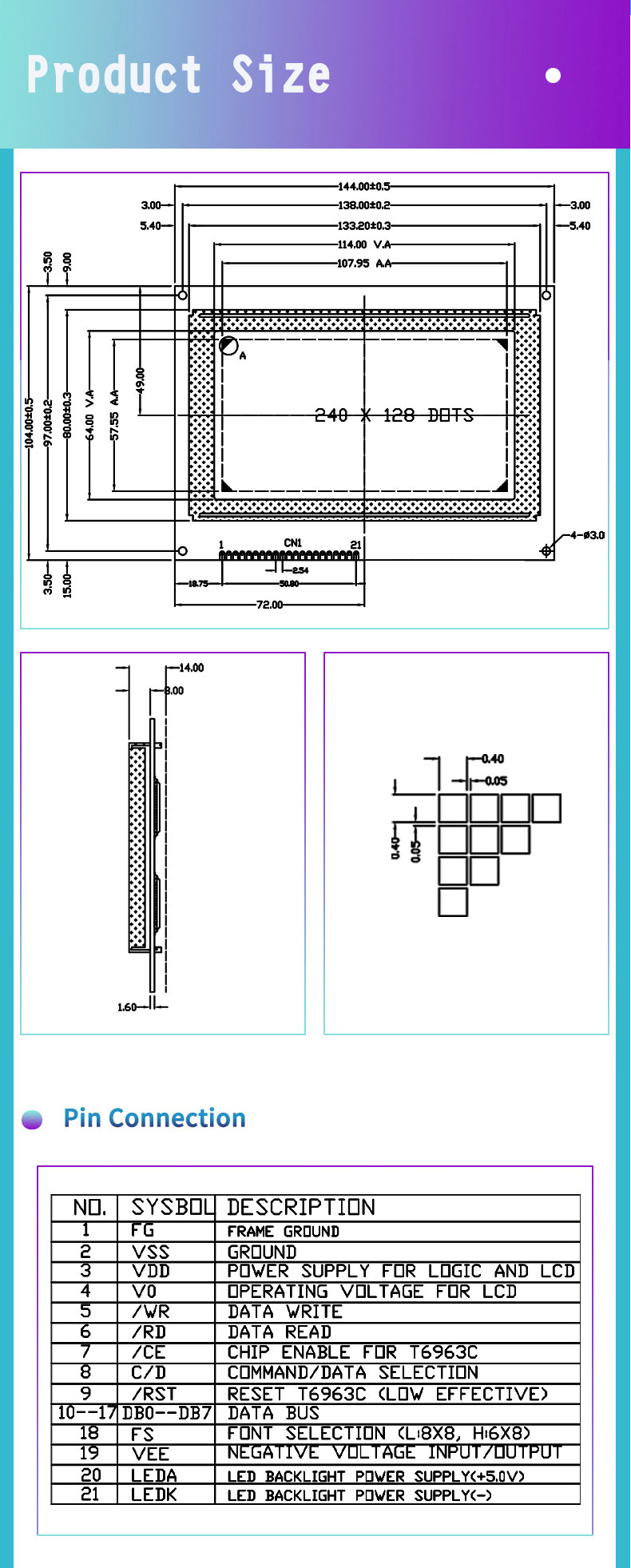

Product Size

FAQ

Q: Does this display have a backlight?
A: This display screen is equipped with backlight.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
