Basic Information

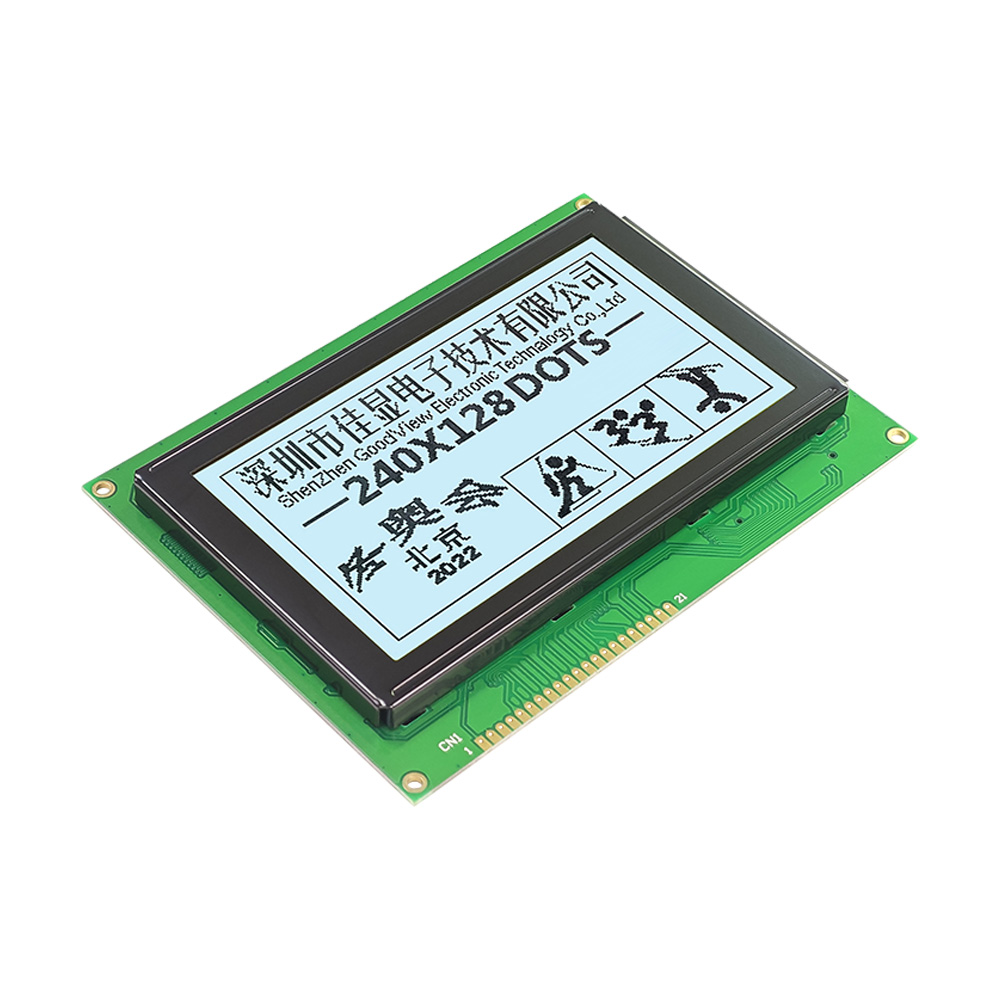

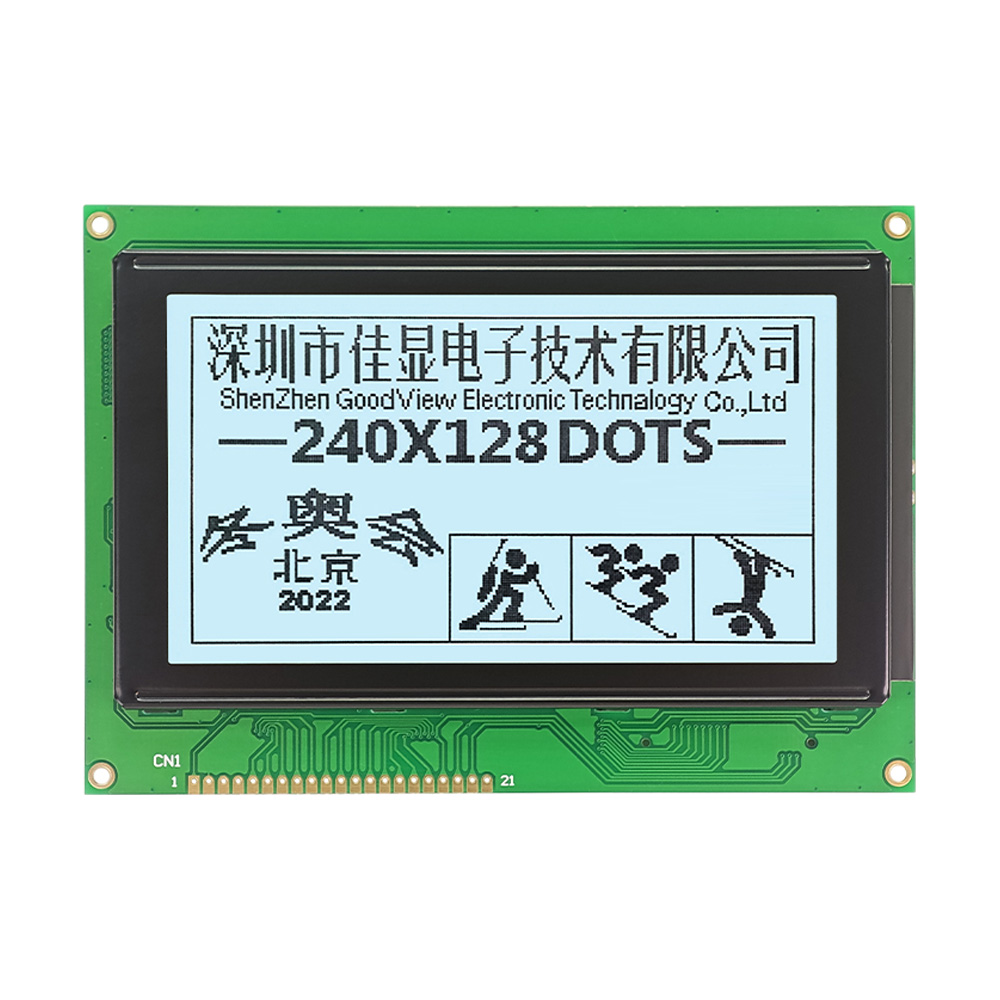

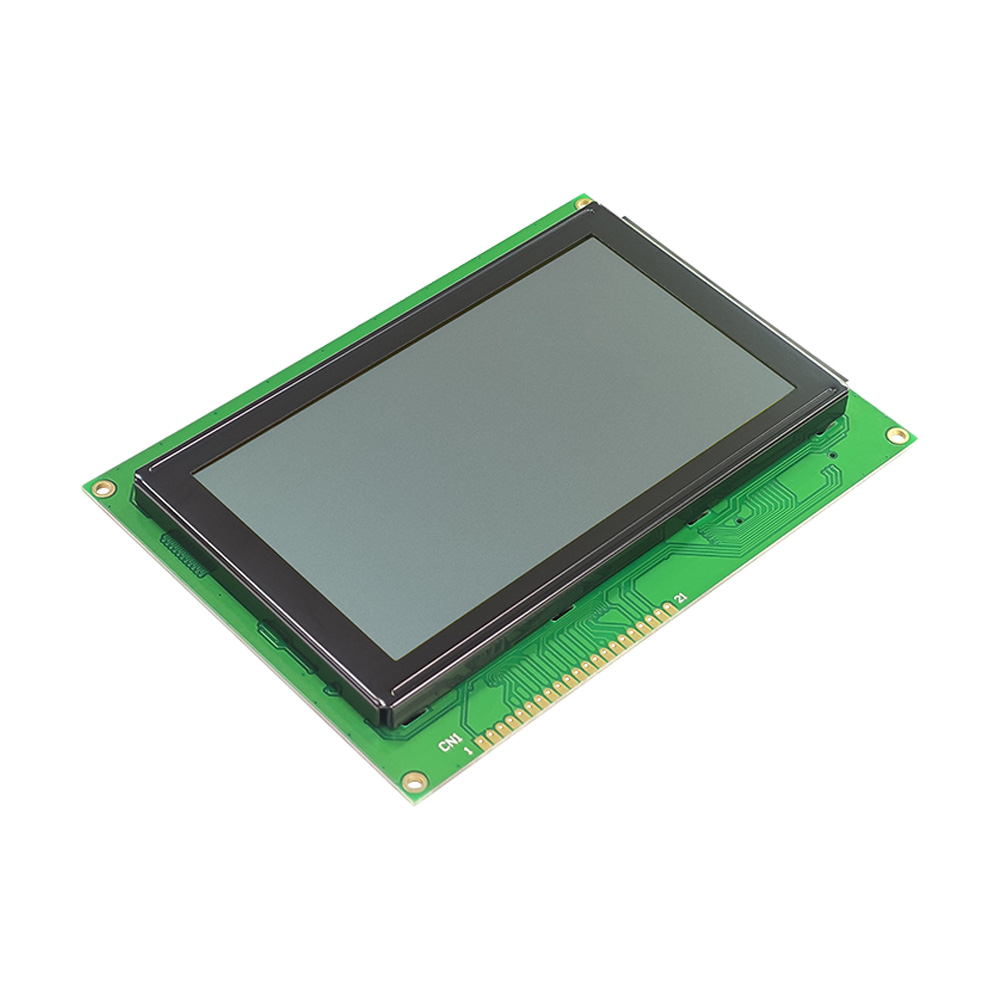

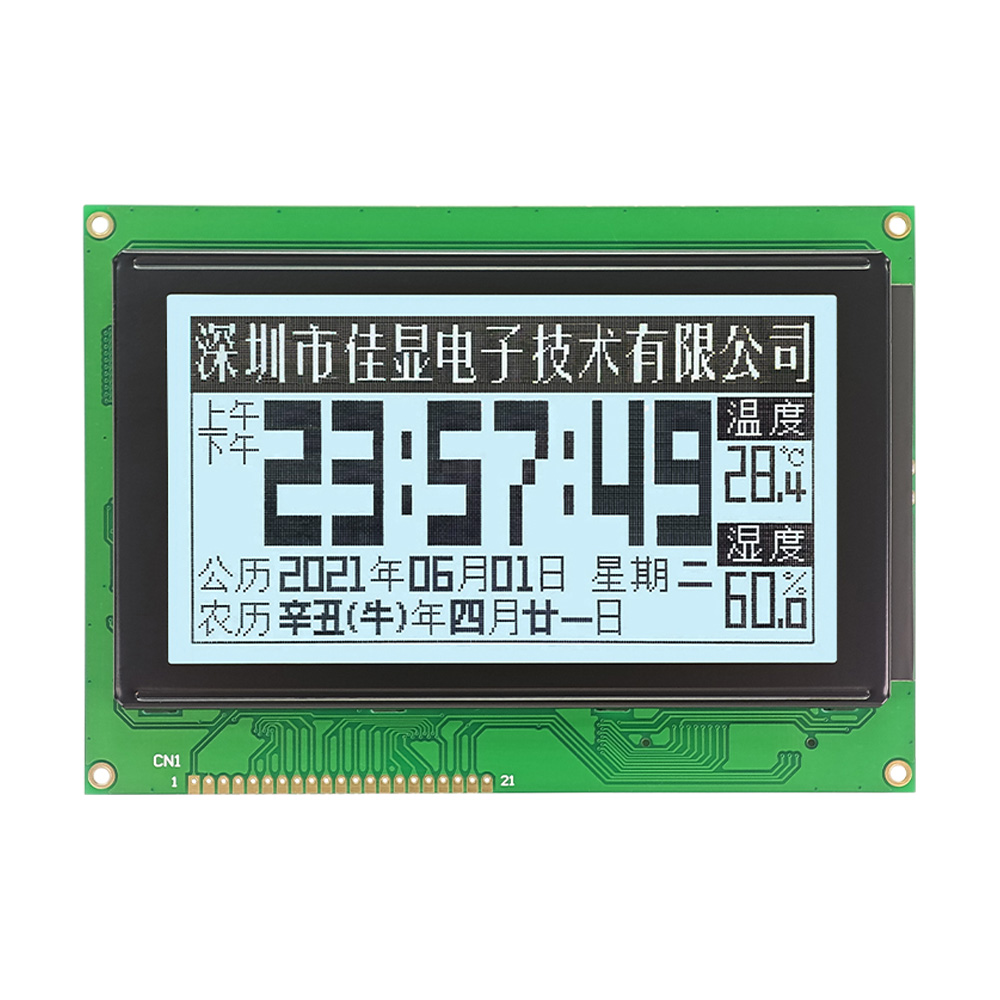

graphic lcd display Featuring a pixel matrix, it can be individually controlled to display various graphics and text.Mostly used for industrial control.

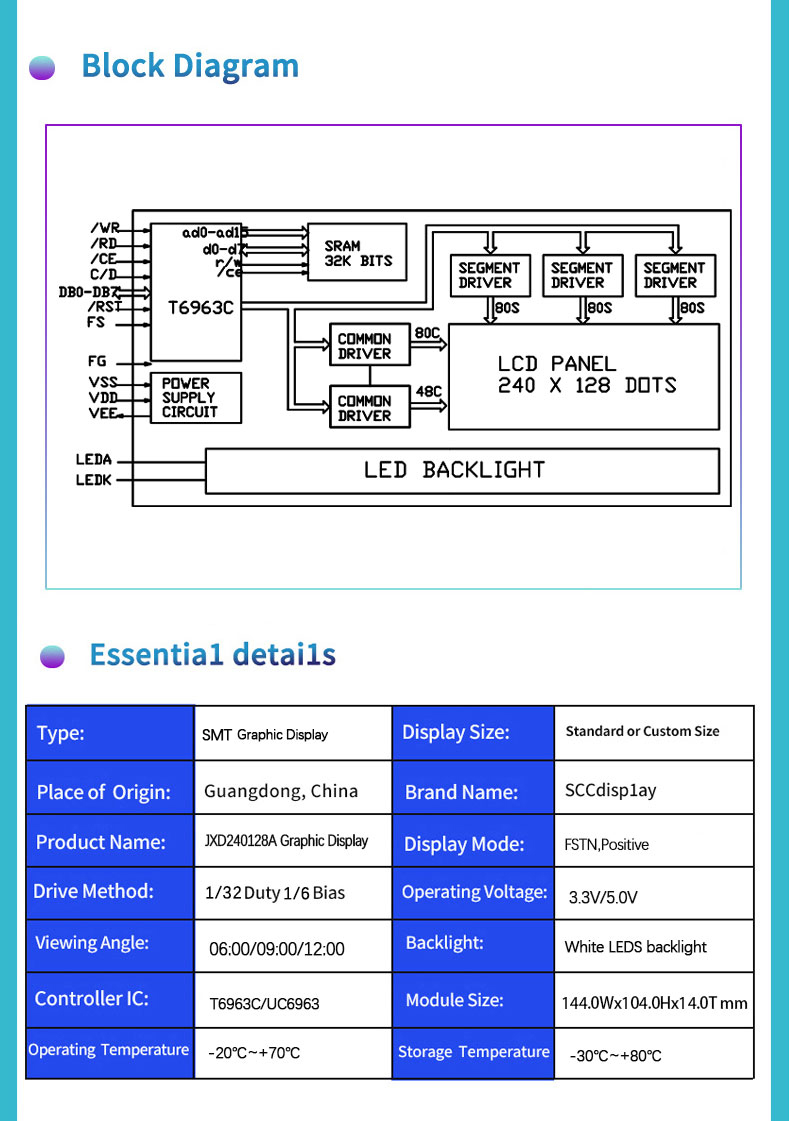

Model | JXD240128A |
Model Size | 144.0×104.0×14.0 mm |
Field of View Size | 133.0×64.0mm |
Display Mode | FSTN positive |
Viewing Angle | 6:00/9:00/12:00 |
Drive Method | 1/128 duty, 1/9 bias |
Top |
-20°C – +70°C
|
Tst
|
-30℃~+80°C |

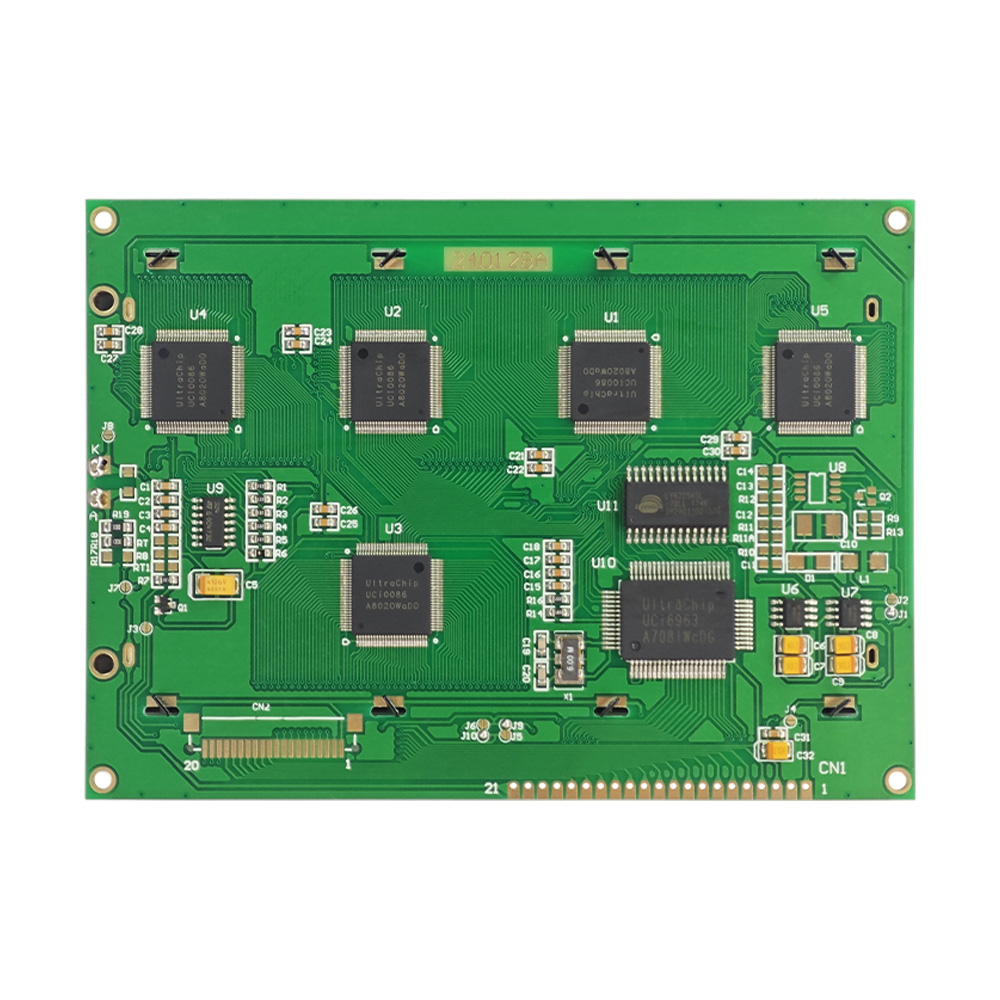

Drive IC
|
T6963C/UC6963 |
Drive Voltage
|
5.0V/3.3V |

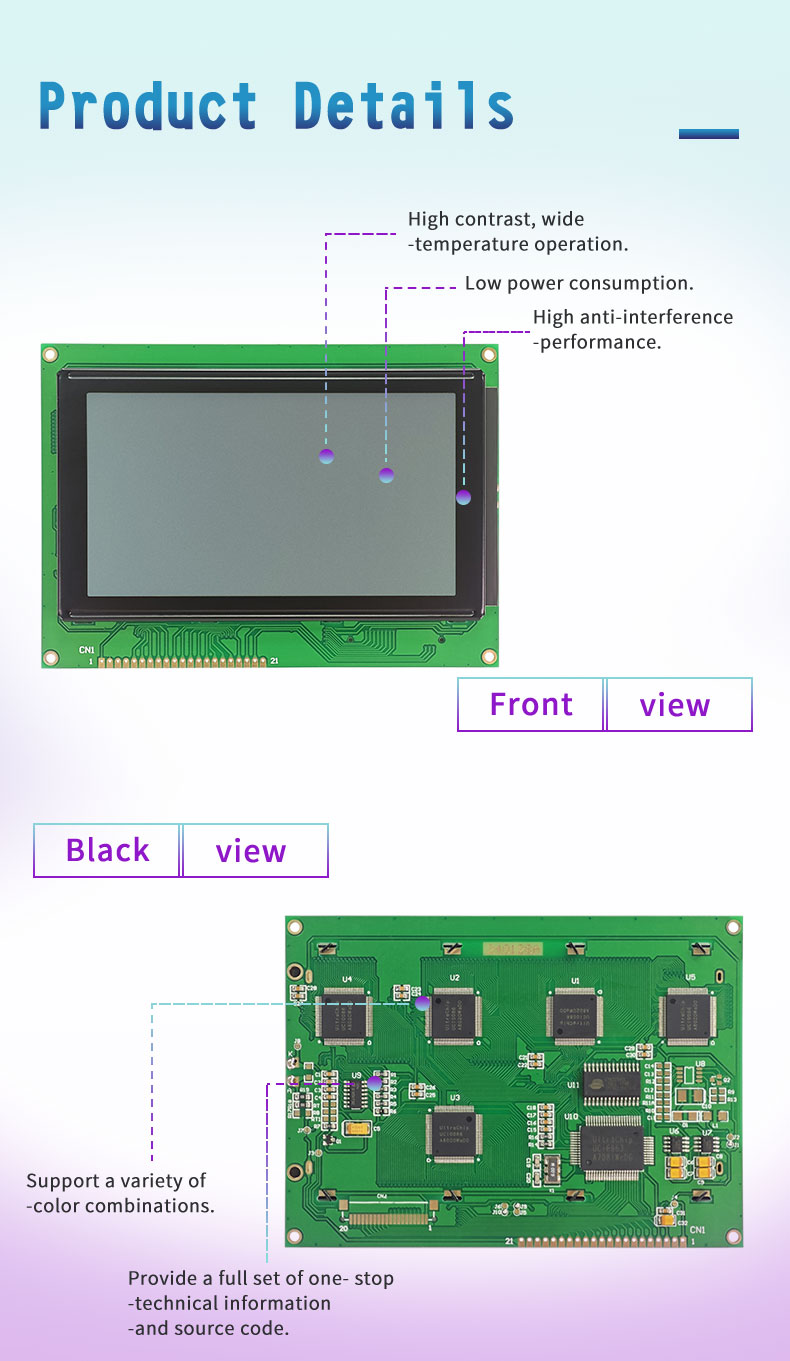

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective

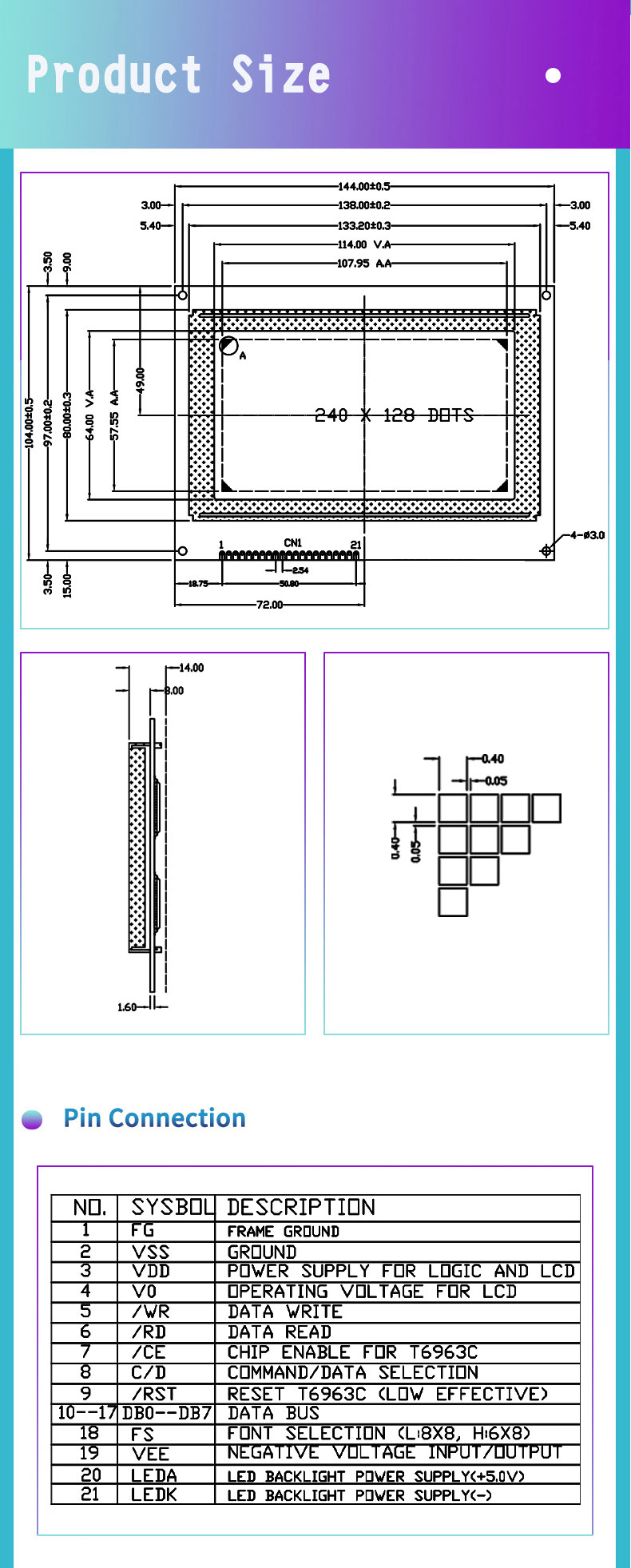

Product Size
FAQ
Q: What is the overall size of this screen?
A: This screen shape 144.0×104.0×14.0 mm.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
