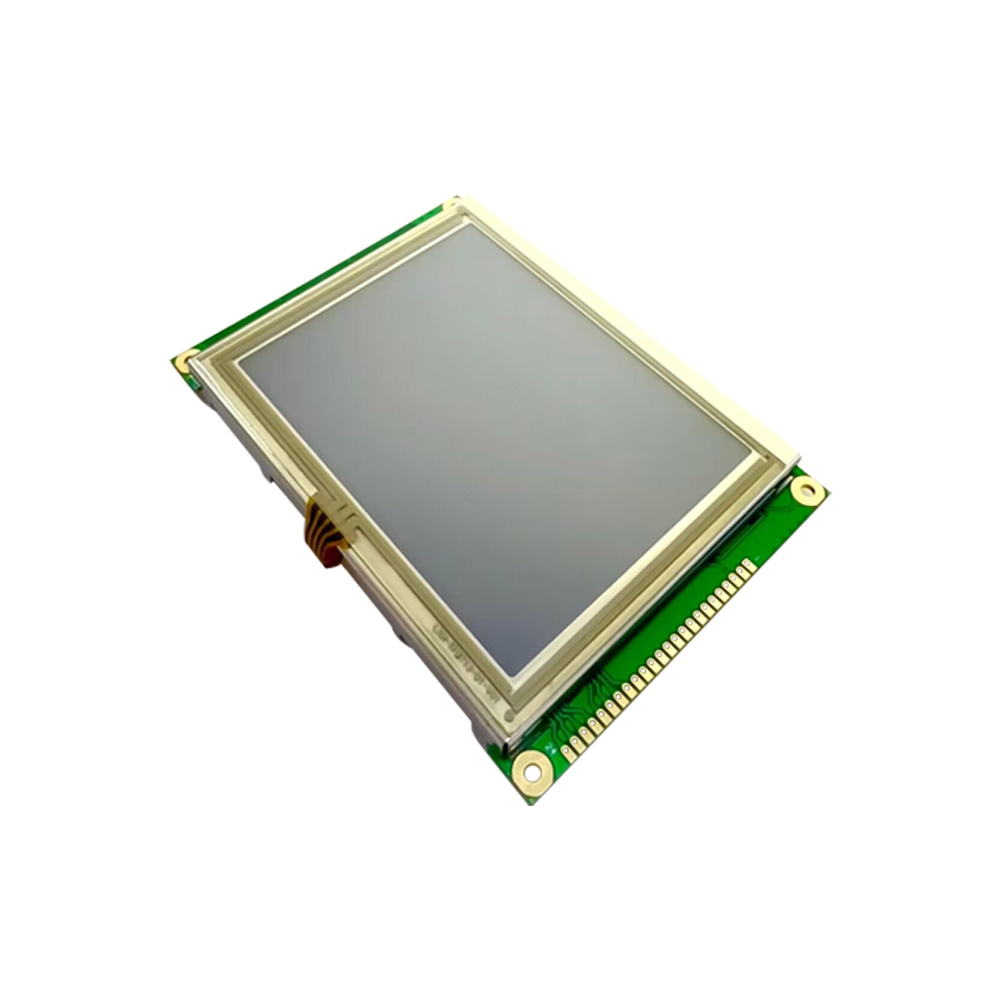

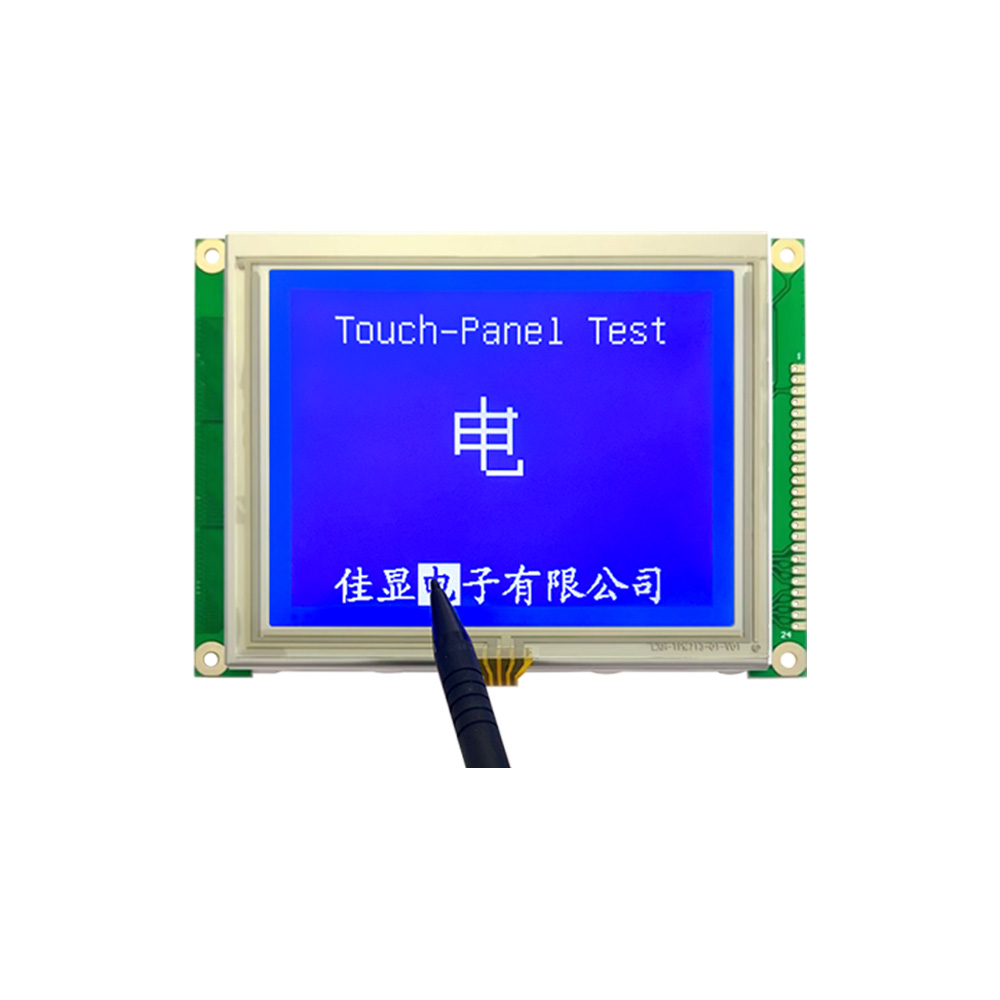

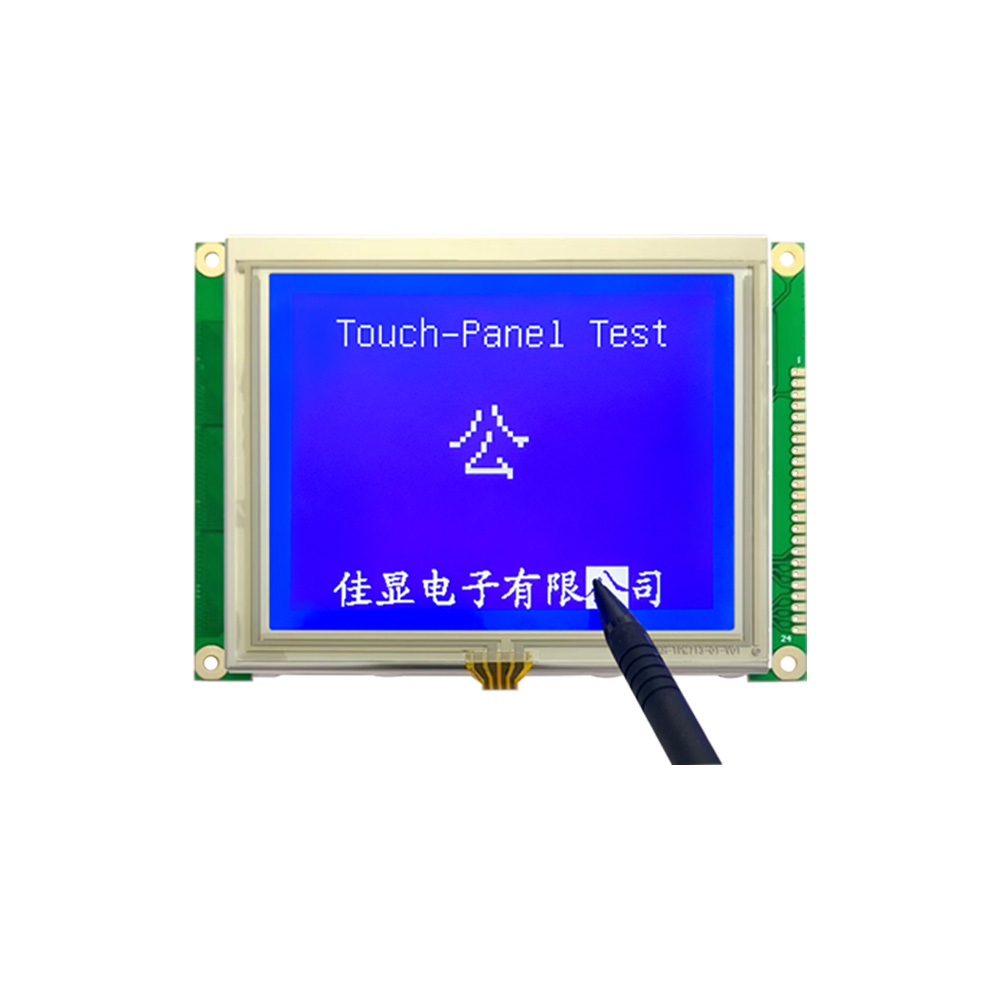

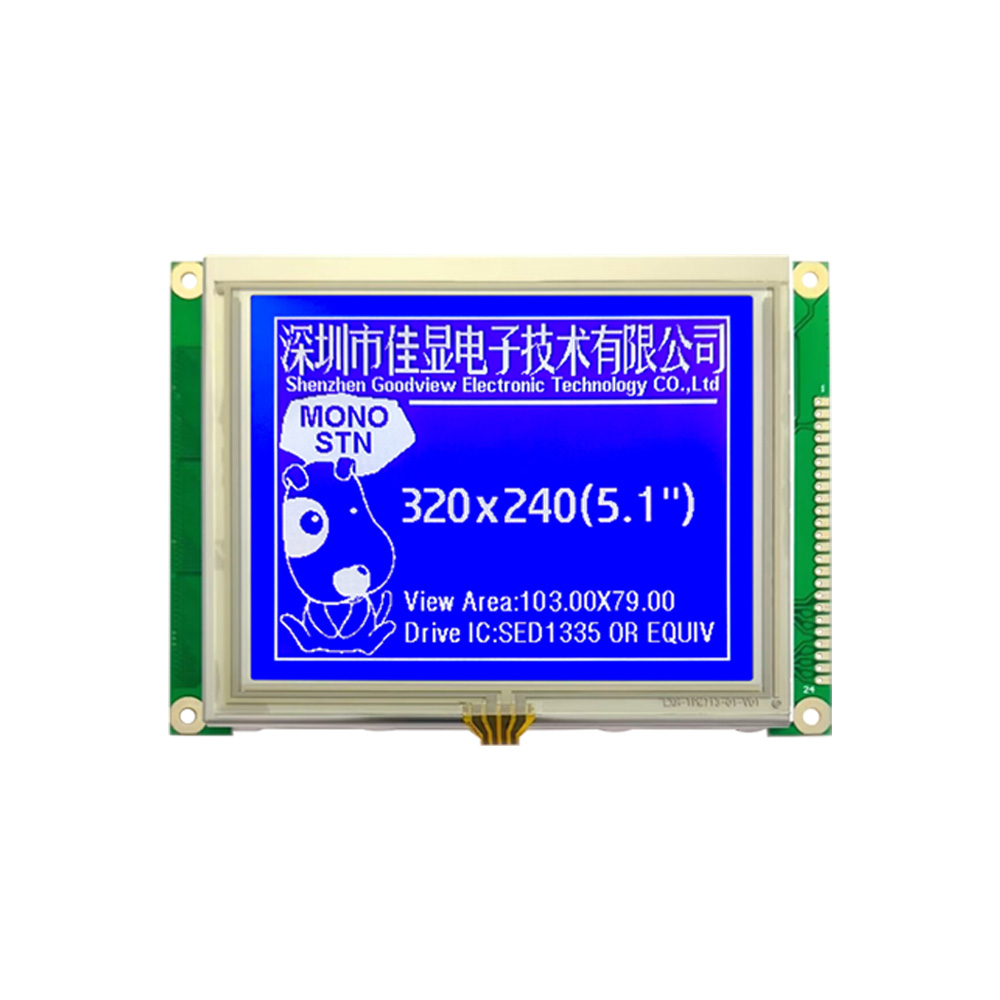

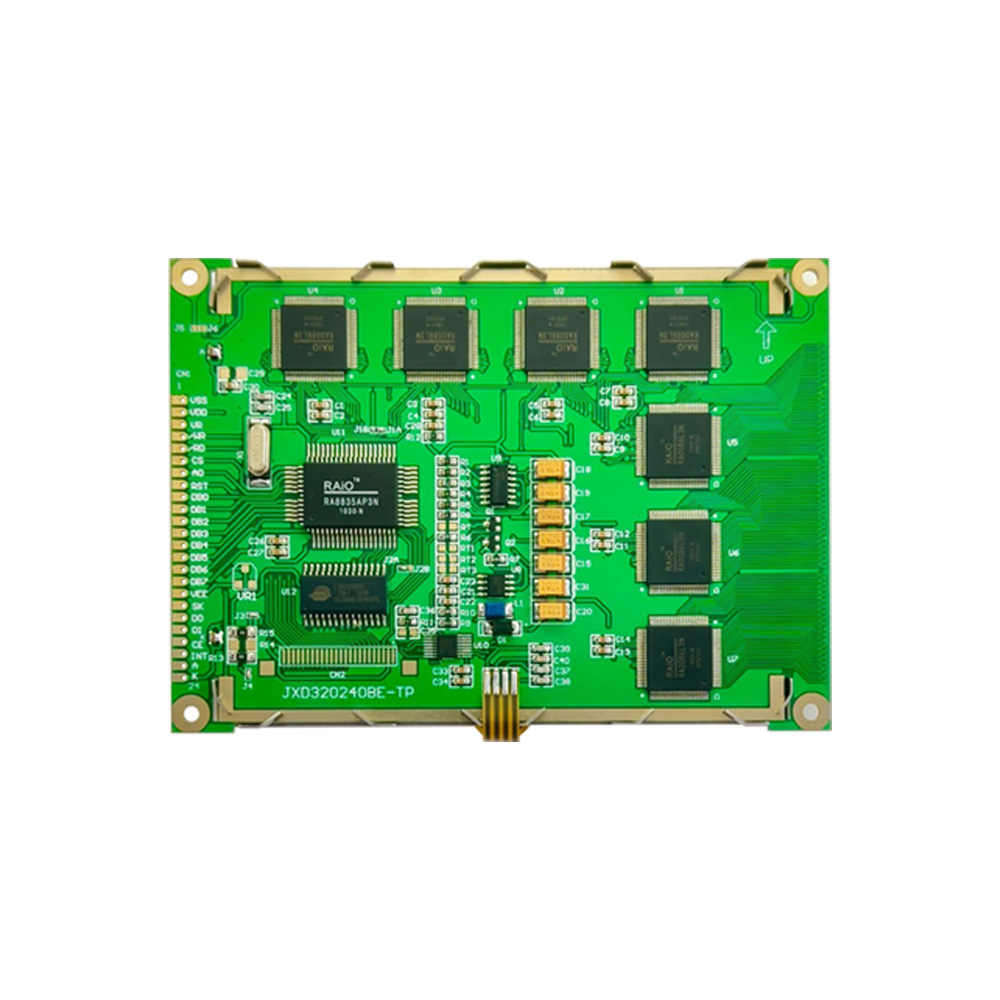

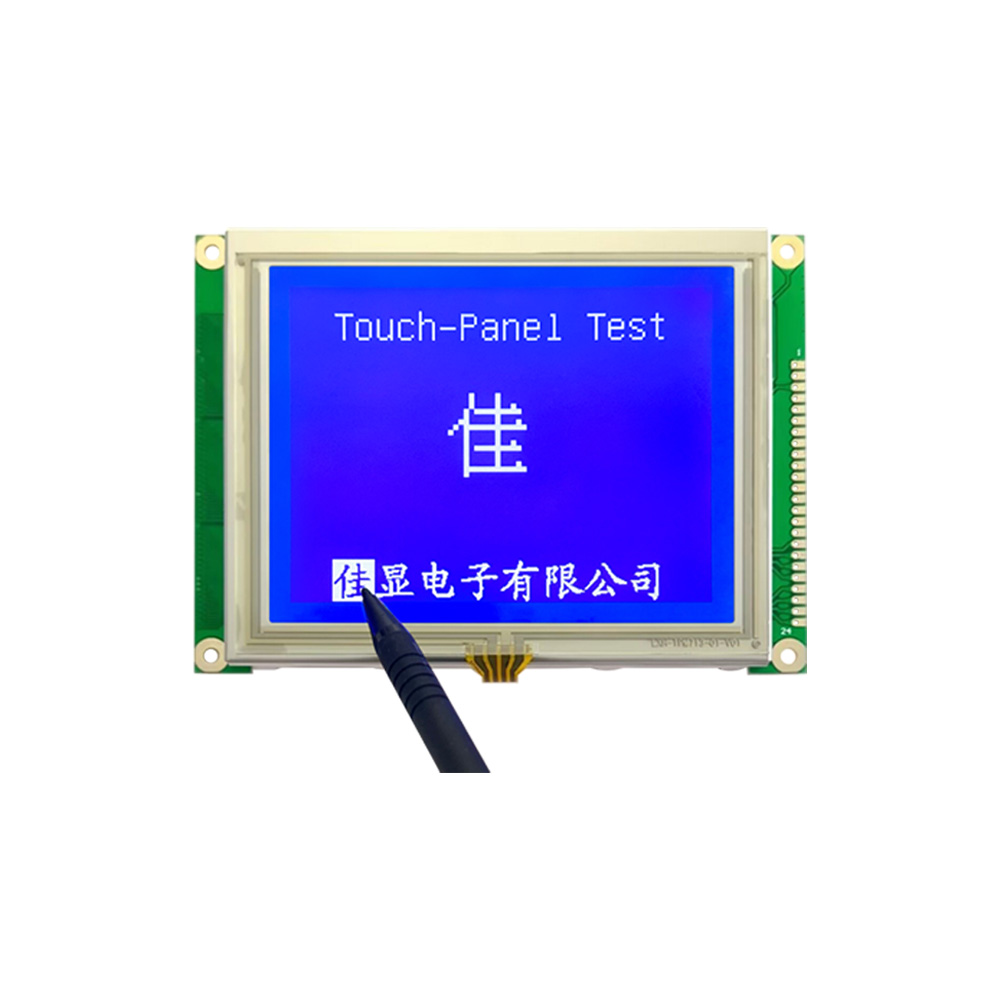

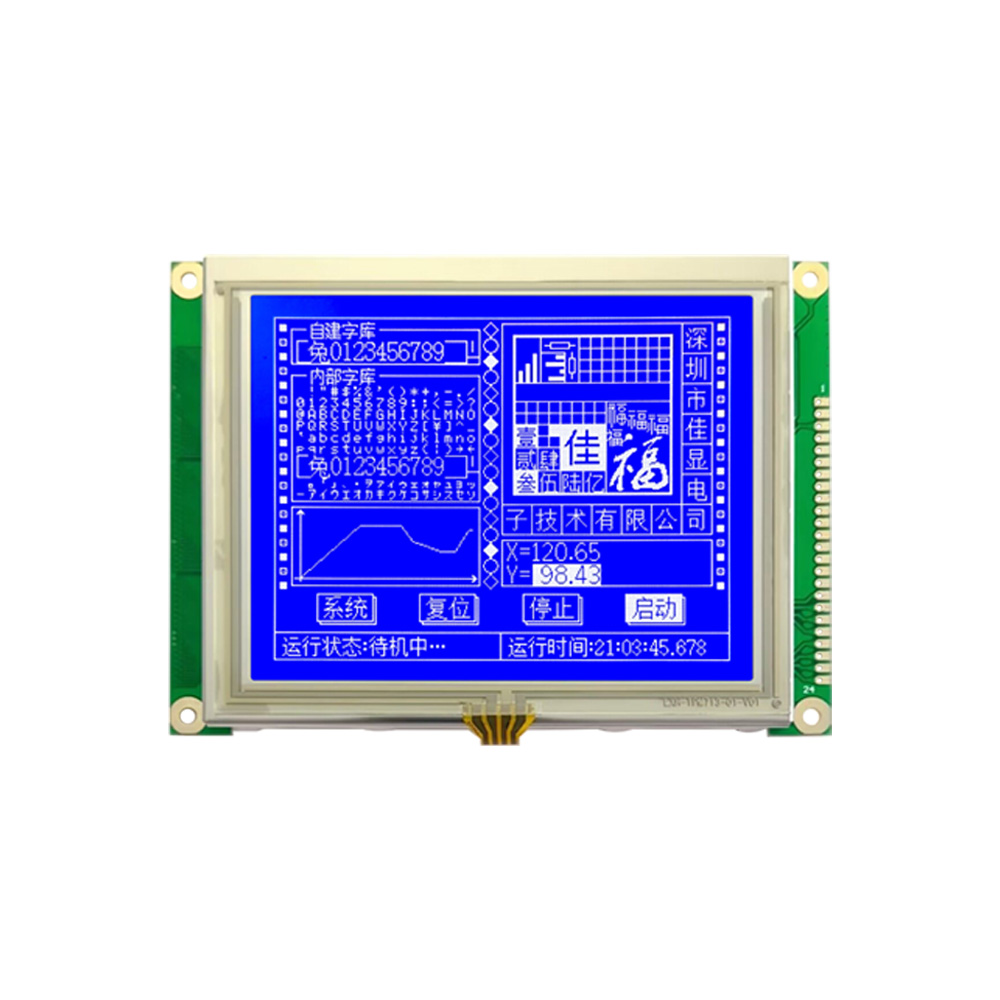

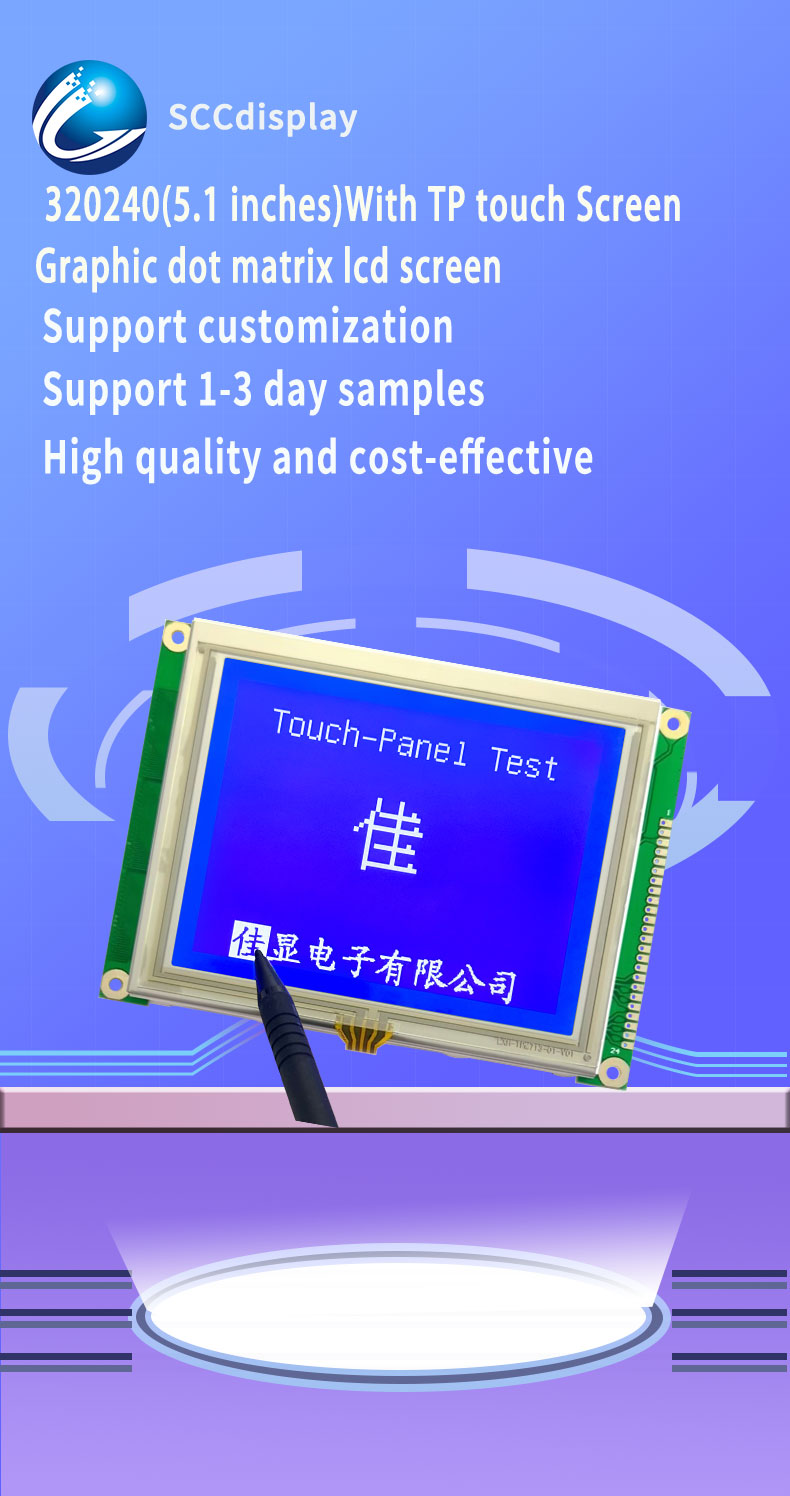

LCD Graphic Display Module Dot Matrix-JXD320240BE-TP (STN Negative)

JXD320240BE-TP

In stock, shipped directly

Quick Info:

  • Model Size: 139×100×13 mm
  • Field of View Size: 103×79 mm
  • Drive lC:RA8835A
  • Viewing Direction: 6 o'clock
  • Colour of Backlight:White
  • LCD Type :Blue STN,Negative
  • Power Supply:5.0V/3.0V
  • Backlight :White LED Backlight
  • Drive Mode:1/240 Duty Cycle,1/16Bias
  • Temperature Range:-20--70

Basic Information
Feature
Product Size
FAQ

Basic Information

LCD graphic display module with a dot matrix is a type of display that can show graphical information using a matrix of dots. These modules are typically used in various applications such as industrial equipment, consumer electronics, and embedded systems.

Model JXD320240BE-TP (STN)
Model Size 139×100×13 mm
Field of View Size 103×79 mm
Drive lC RA8835A
Colour of Backlight
White
Temperature Range
-20~-+70
Viewing Direction
6 o’clock
Power Supply
5.0V/3.0V
LCD Type
Blue STN,Negative
Backlight White LED Backlight
Drive Mode
1/240 Duty Cycle,1/16Bias

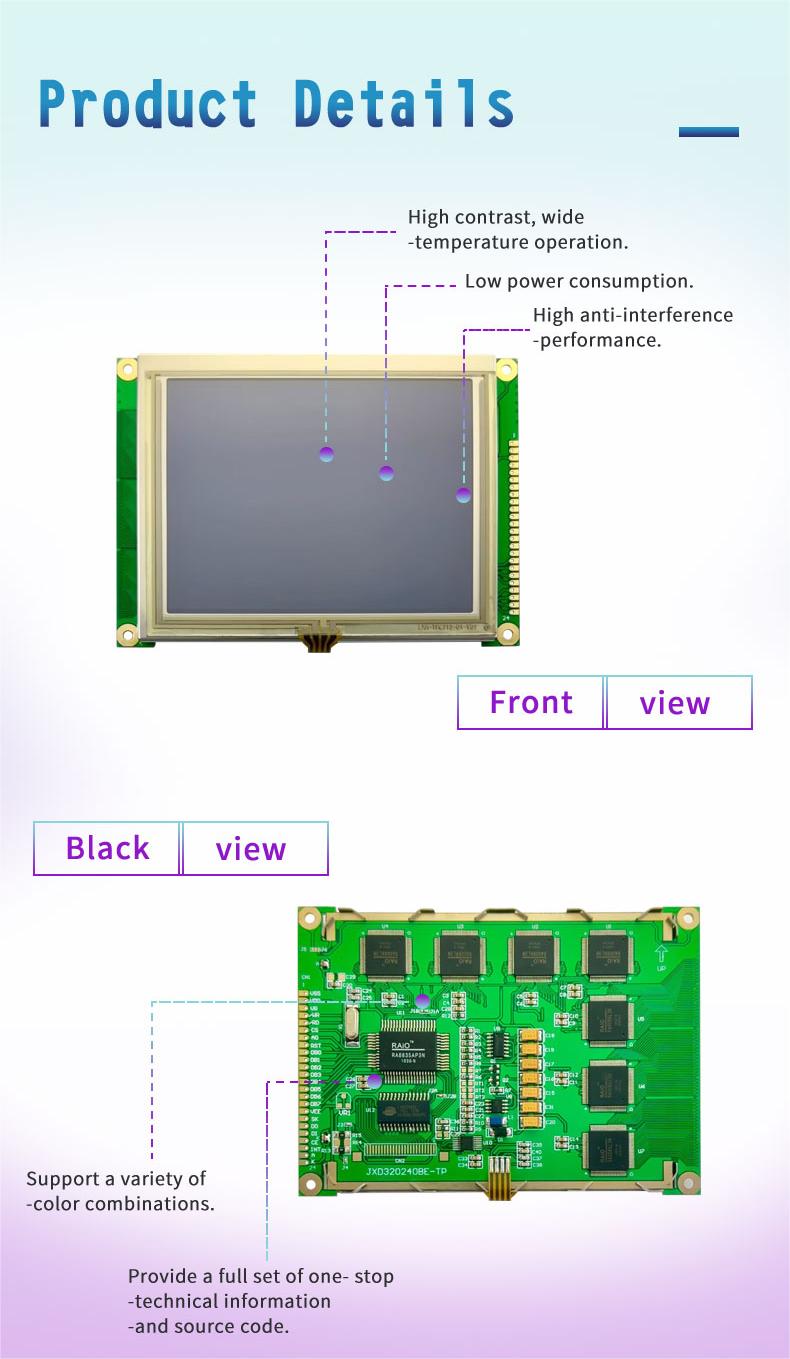

Feature

  • High contrast, wide-temperature operation
  • Low power consumption, high anti-interference performance
  • Support for multiple color combinations
  • Provide a complete set of one-stop technical information and source code
  • Supports customization
  • Supports 1-3 day samples
  • High quality and cost-effective

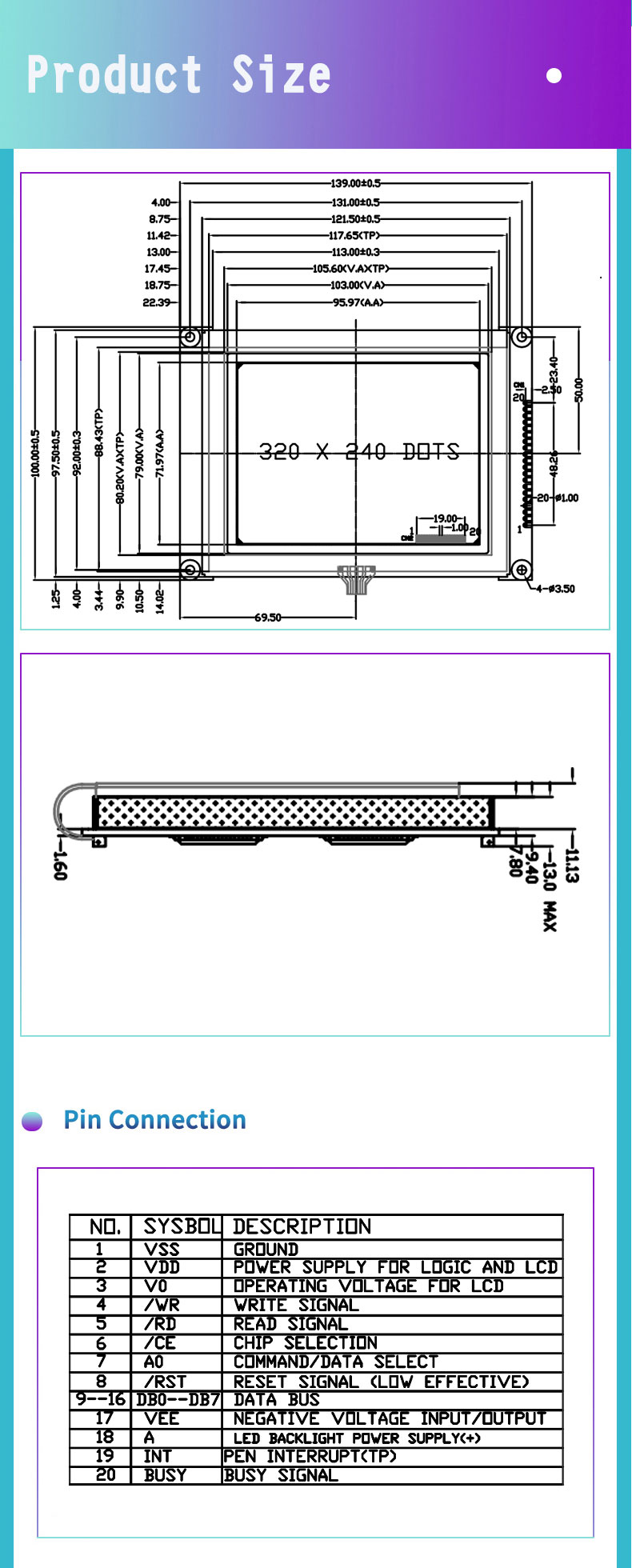

Product Size

FAQ

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module’s performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
