Basic Information

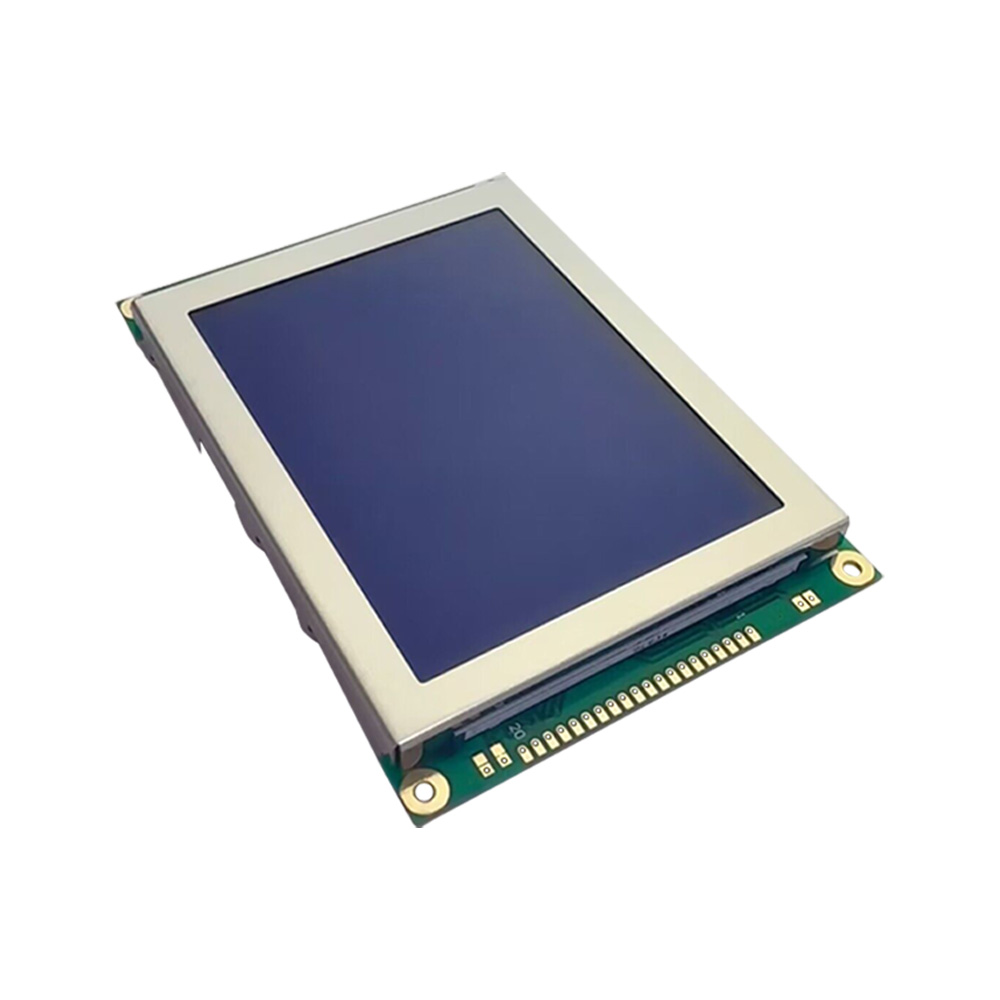

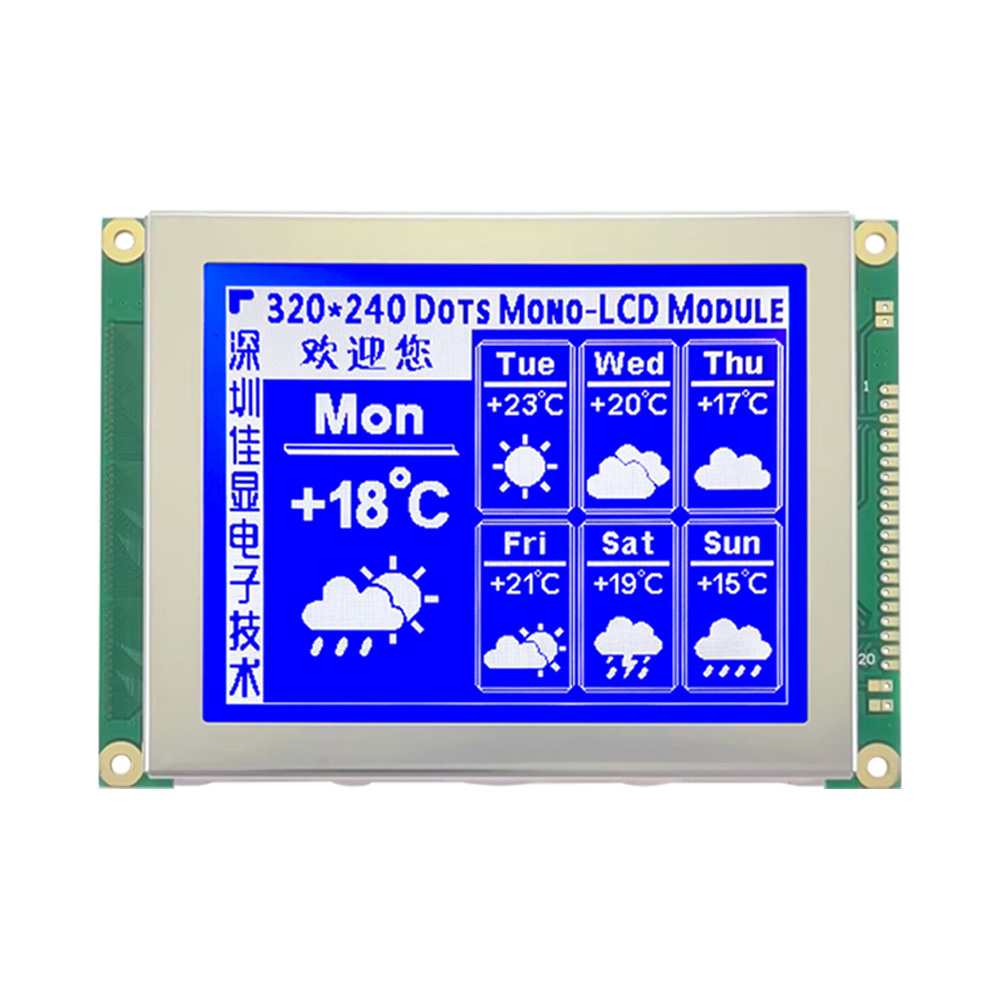

LCD graphic display module is a type of display that can show graphical images, symbols, and text, rather than just alphanumeric characters.STN Negative display mode.High definition and high contrast, widely used in various industrial instruments.
Model | JXD320240BT-51 (STN) |
Model Size | 139×100×12 mm |
Field of View Size | 103×79 mm |
Drive lC | Ra8835AP3N |
Package
|
COB or SMT
|
Operating Temperature
|
-20℃~70℃
|
Viewing Direction
|
6 o’clock
|
Storage Temperature
|
-30℃~80℃
|
LCD Type
|
STN Negative
|
Display Type |
Positive Type,Negative Type
|
Colour
|
Blue |

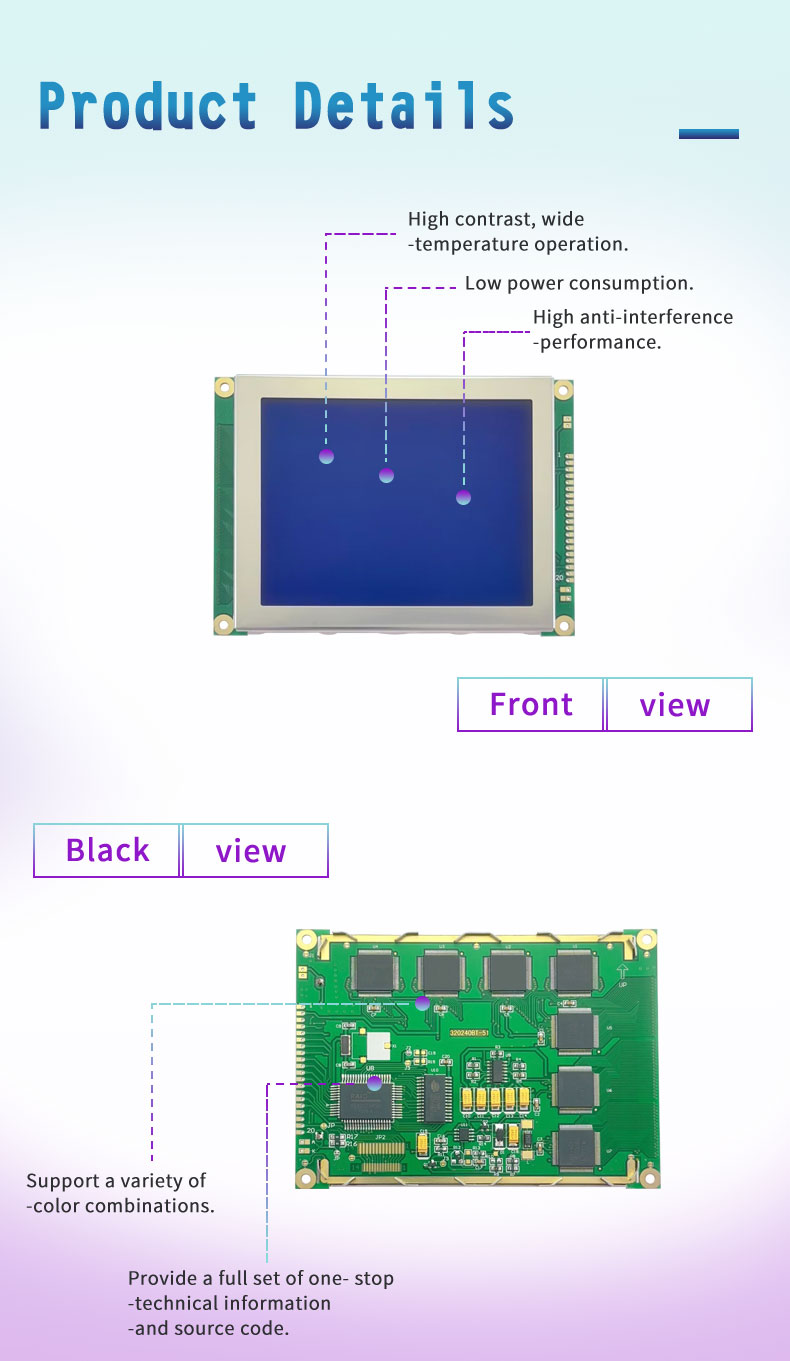

Feature
- High contrast, wide-temperature operation
- Low power consumption, high anti-interference performance
- Support for multiple color combinations
- Provide a complete set of one-stop technical information and source code
- Supports customization
- Supports 1-3 day samples
- High quality and cost-effective

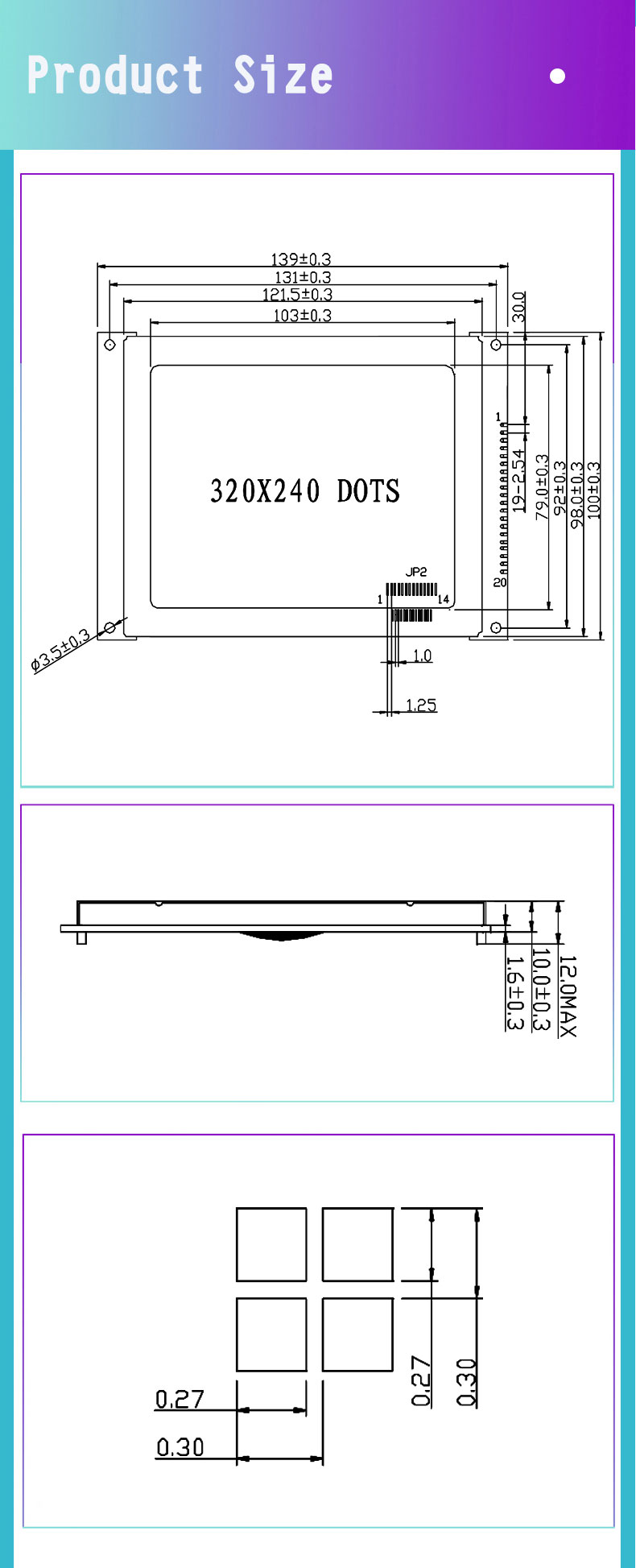

Product Size
FAQ
Q: What driver does this screen use?
A: This screen is used PA8835AP3N Driver.
Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.
Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.
Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.
Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.
If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
