LCD Graphics Display-JXD12232D(STN Negative)

JXD12232D

In stock, shipped directly

Quick Info:

  • Model Size: 84×44×13.0 mm
  • VA Size:60.5×18mm
  • Viewing Angle:6 o'clock
  • Working Temp:-20'C-+70°C
  • Storage Temp:-30°C-+80°C
  • Display Type:STN
  • Polarizer Mode:Negative
  • Drive Method:1/32 Duty,1/5 Bias
  • Working Voltage:VDD-VSS=+5.0VDC
  • Backlight:Yellow-Green;LED(+)-LED(-)=+5.0VDO

Basic Information
Feature
Product Size
FAQ

Basic Information

LCD graphics display uses liquid crystals to render detailed images and text by adjusting light through pixel arrays.This method will make the image clearer and consume less energy.

Character Type Customized
Model JXD12232D STN Blue
Model Size  84×44×13.0 mm
VA Size 60.5×18mm
Display Type
STN Negative
Viewing Angle
6 o’clock
Working Temp
-20’C-+70°C
Storage Temp
-30°C-+80°C
Drive Method
1/32 Duty,1/5 Bias
Working Voltage
VDD-VSS=+5.0VDC

Feature

  • High contrast, wide-temperature operation
  • Low power consumption, high anti-interference performance
  • Support for multiple color combinations
  • Provide a complete set of one-stop technical information and source code
  • Supports customization
  • Supports 1-3 day samples
  • High quality and cost-effective

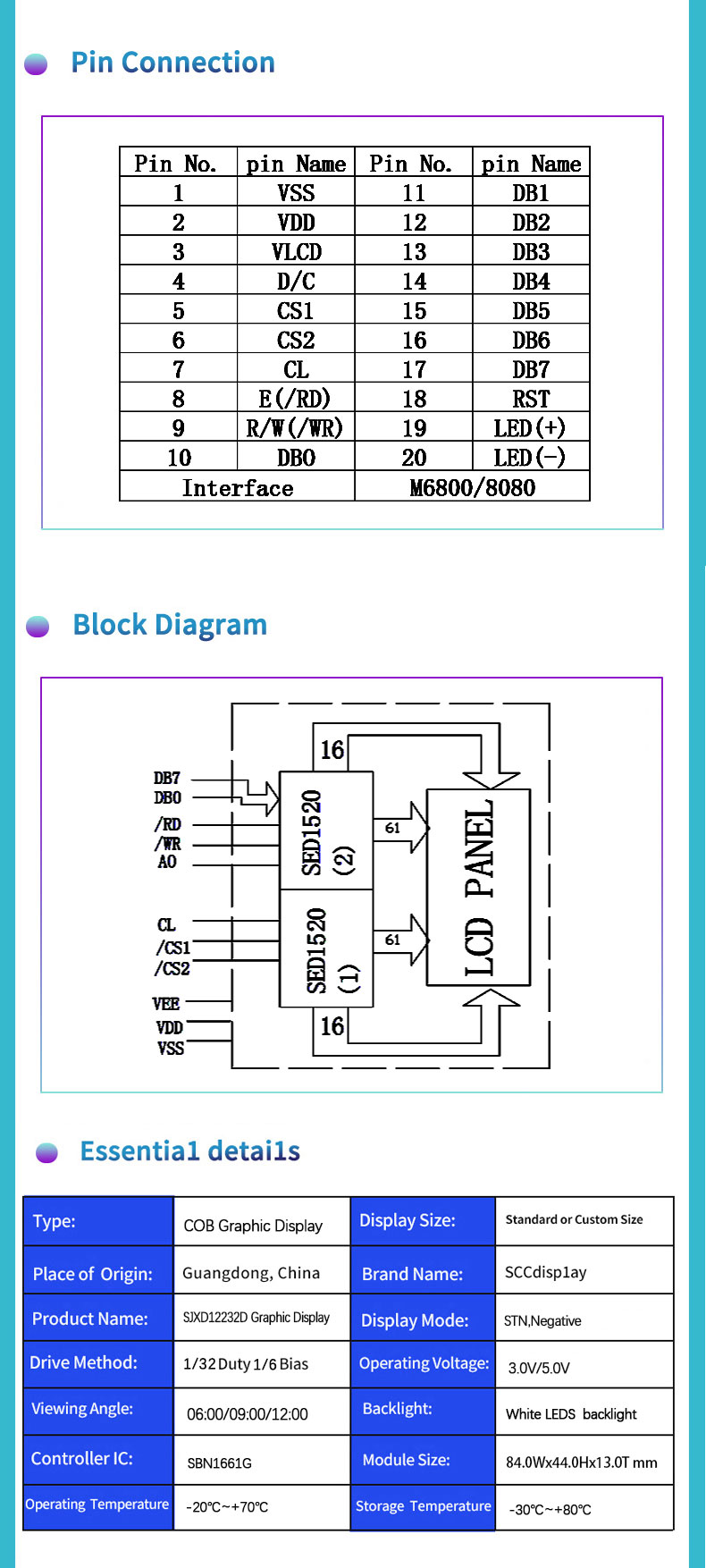

Product Size

FAQ

Q: Do you provide samples?
A: Yes, samples are typically available within 1-3 days for customers to test and evaluate the module’s performance and compatibility.

Q: How to customize this LCD display module?
A: The module can be customized according to customer requirements, including character display content, backlight color, shell design, and other parameters, to meet specific application needs.

Q: What applications is this module suitable for?
A: This module is suitable for applications requiring the display of large font characters and numbers, such as meters, equipment control panels, and information display systems.

Q: How is the quality of this module?
A: This module is manufactured using high-quality LCD panels and electronic components, designed to be stable and reliable, ensuring long-term stable operation and high-quality display performance.

Q: How is cost-effectiveness ensured?
A: The module is designed with streamlined production and cost control, aiming to provide a cost-effective solution while maintaining high quality and performance.

If you would like to learn more or customize the LCD display screen you need, please feel free to contact us.
